Printing Ink Abrasion Tester

1. INTRODUCTION

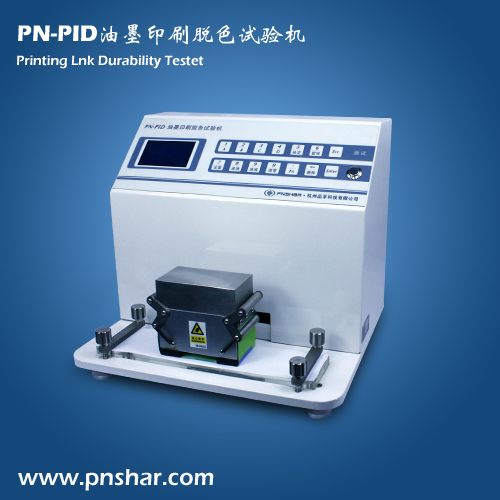

PN-PID ink printing rub durability tester is a new type testing machine designed to measure scuffing or rubbing resistance. Several testers can be performed including dry rub (the amount of transfer ink from one dry surface to another),wet rub (the amount of transfer of ink from wetted surface to another). PN-PID ink rub tester is used for test of presswork wearability, PS sensitization wearability and correlation product wearability. Also it able to do dry rubtest ,and wet rub test, decolour change test, paper blur test and especially attrition.

2. APPLICATIONS:

Paper. corrugated board. and corrugated carton.

3. STANDARDS:

GB/T 7706,ASTM D5264, TAPPI-UM486, ISO9000

4. SPECIFICATIONS:

1). Power supply: AC220V±10% 2A 50Hz;

2. Rub speed: 21/43/85/106 r/min;

3). Rub loading: 20N-GB,0.9kg(2Lb)-ASTM;

4). Rub distance: 60mm;

5). Ru time: 1~999999;

6). Display screen: LCD screen and system operation interface;

7). Size: length × width × height=335 ×295 × 295 mm;

8). Weight : 20 kg.

5. FEATURES:

1). Four speeds can select:21r/min,43 r/min,85 r/min, 106 r/min;

 2). The order of take count of rub time could be selected.

3). The rub time is between 1~999999.

4). It will stop when test over, and the rub body will return to the initially position.

5). The data can be saved and memory.

6). Big blue LCD display with Chinese and English operating system.

7). Mechanical and electrical integration of modern design, compact structure, nice appearance, easy maintenance.
