Program Controlled AC/DC Withstanding Voltage Resistance Tester Hipot Tester
Program Controlled AC/DC Withstanding Voltage Resistance Tester Hipot TesterParameter / ModelProgram-Controlled Insulation Withstand Voltage TesterProgrammable Withstand Voltage TesterRK9920RK9910RK9920AYRK9910AYRK9920BYRK9910BYWithstand Voltage TestOutput Voltage (KV)AC:0.05-5.00 DC:0.05-6.00AC:0.0......
Send Inquiry
Product Description
| Parameter / Model | Program-Controlled Insulation Withstand Voltage Tester | Programmable Withstand Voltage Tester | ||||||||||||

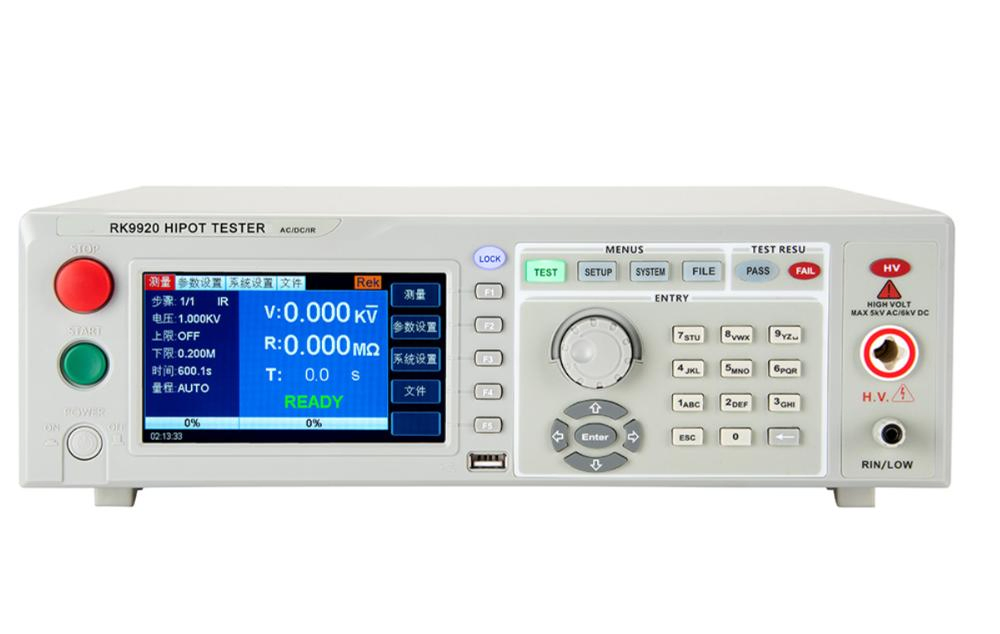

| RK9920 | RK9910 | RK9920AY | RK9910AY | RK9920BY | RK9910BY | |||||||||
| Withstand Voltage Test | Output Voltage (KV) | AC:0.05-5.00 DC:0.05-6.00 | AC:0.05-5.00 DC:0.05-6.00 | AC:0.05-5.00 | ||||||||||
| Test Accuracy | ± (2.0% Setting + 2V) | |||||||||||||
| Output Accuracy | ± (2.0% Setting + 5V) No Load | |||||||||||||
| Test Current (MA) | AC:0.001mA-20mA DC:0.1uA-10mA | AC:0.001mA-10mA DC:0.1uA-5mA | AC:0.001mA-20mA DC:0.1uA-10mA | AC:0.001mA-10mA DC:0.1uA-5mA | AC:0.001mA-20mA | AC:0.001mA-10mA | ||||||||
| Test Accuracy | ± (2.0% Of Reading + 5 Words) | |||||||||||||
| Insulation Test | The Output Voltage (KV) | DC:0.050-1.00 | / | / | / | / | ||||||||
| Test Accuracy | ±(2.0% Setting + 2V) | / | / | / | / | |||||||||
| Test Resistance | 0.1MΩ-10GΩ | 0.2MΩ-10GΩ | / | / | / | / | ||||||||
| Test Accuracy | 1.0MΩ-10GΩ ±20% | 0.1MΩ-999MΩ ±10% | / | / | / | / | ||||||||
| Discharge Function | Automatic Discharge After Test | / | / | / | / | |||||||||
| Arc Detection | ||||||||||||||
| Measuring Range | Corresponding Current | 1mA-20mA | ||||||||||||
| Testing Time | 0.1S-999.9S | |||||||||||||
| Output Frequency | 50Hz/60Hz | |||||||||||||
| Input Characteristics | 115V/230V±10% 50Hz/60Hz | |||||||||||||
| Test Alarm | Buzzer, LCD, FAIL Indicator | |||||||||||||
| Keyboard Lock | Independent Keyboard Lock Key | |||||||||||||
| Screen Size | 5 Inch TFT LCD | |||||||||||||

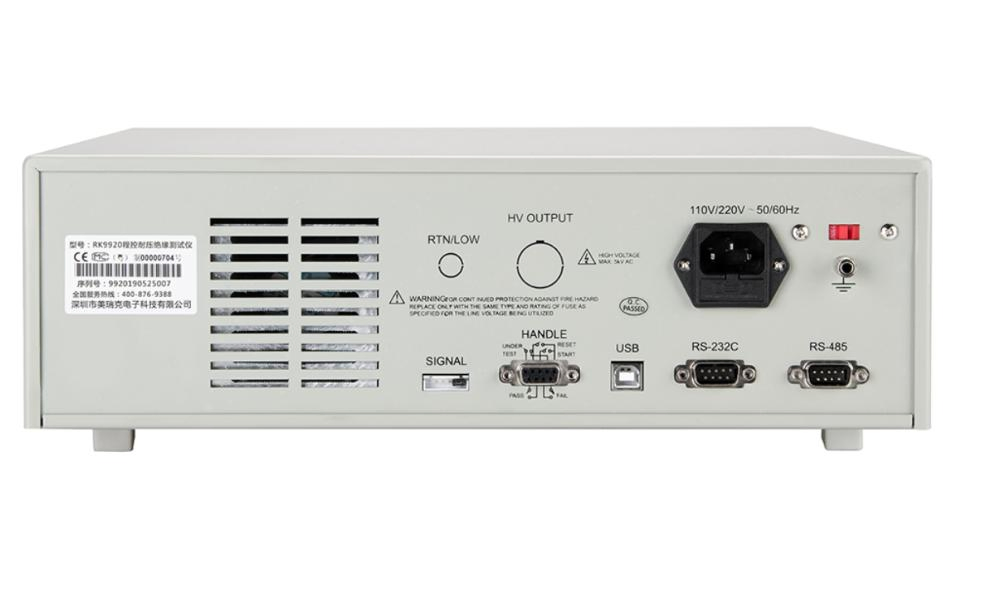

| Communication Interface | HANDLER, RS232, RS485, USBDEV (Computer Interface), USBHOST (U Disk Interface) | |||||||||||||
| Voltage Rise Time | 0.1S-999.9S | |||||||||||||
| Test Time Setting (AC / DC) | 0.2S-999.9S | |||||||||||||
| Voltage Drop Time | 0.1S-999.9S | |||||||||||||
| Waiting Time | 0.2S-999.9S | |||||||||||||
| Memory | 16M Flash, 50 Test Steps Per File | |||||||||||||
| Size(W×H×D | 350mm×110mm×430mm | |||||||||||||
| Weight | 15kg | 14kg | 15kg | 14kg | 15kg | 14kg | ||||||||

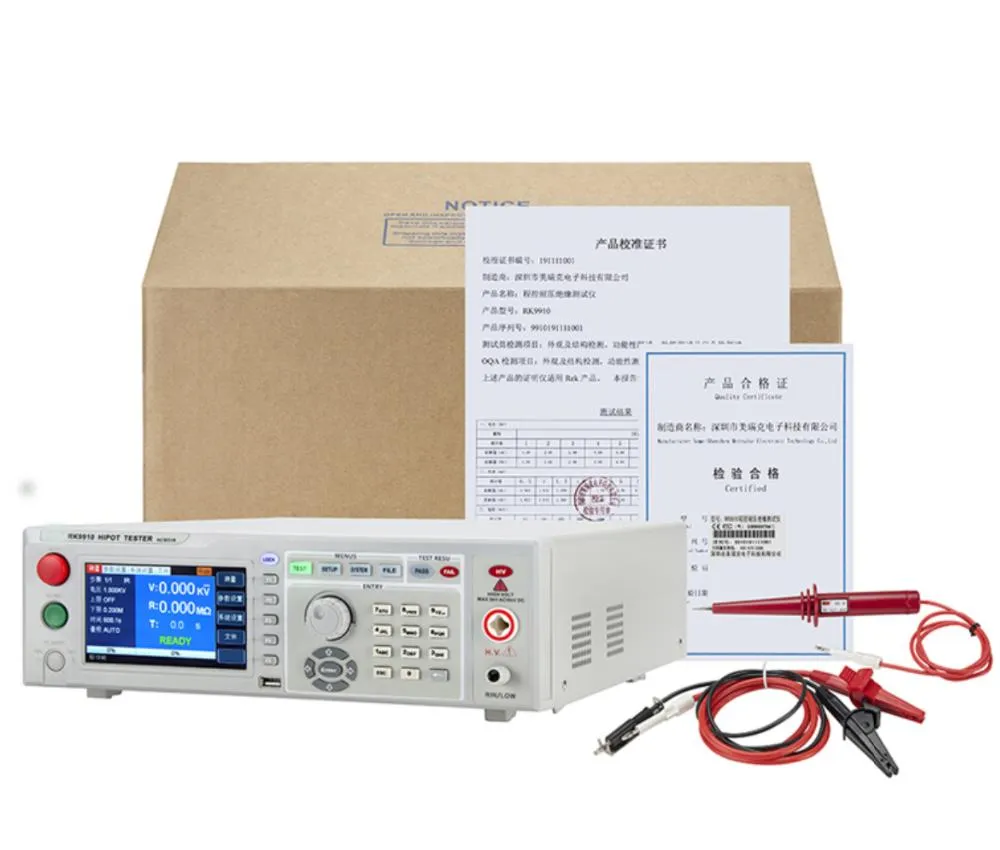

| Accessories | Test Clamp, Grounding Clamp, Cross Uncontrolled High Voltage Bar, Power Line, RS232 Serial Port Connection Line | |||||||||||||
| Optional Accessories | 16g U Disk (Including PC Software), RS232 To USB Cable, USB To Square Port Cable | |||||||||||||
