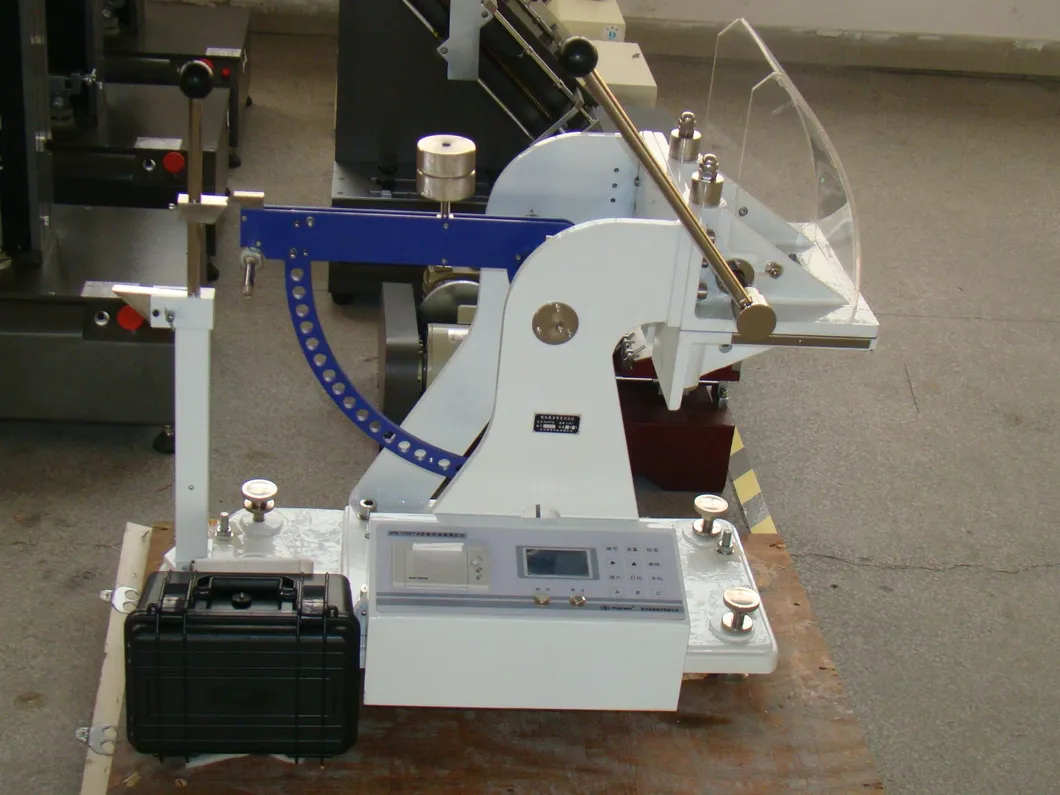

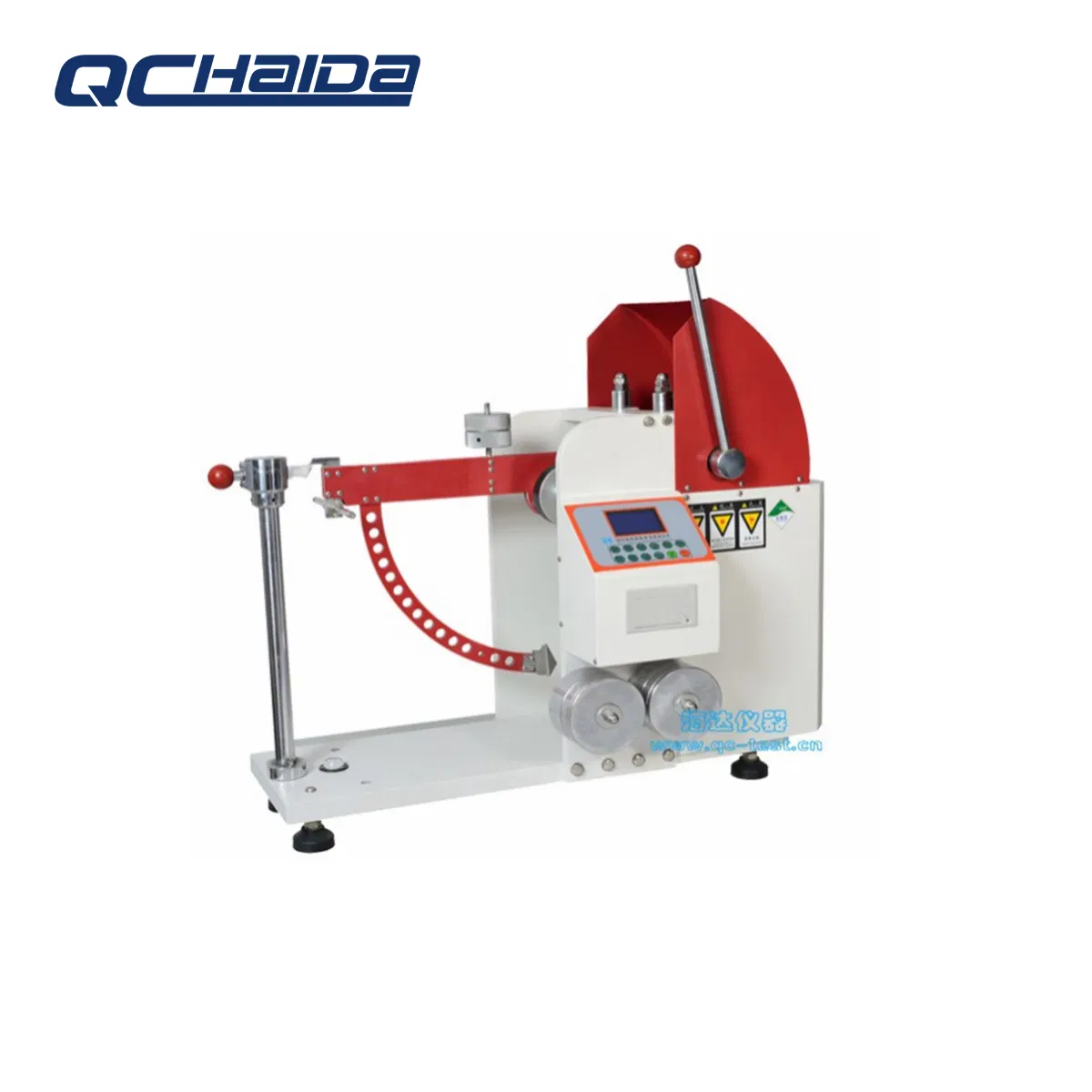

Programmable Cardboard / Paperboard Puncture Strength Test Instrument

Product Description

Programmable Cardboard / Paperboard Puncture Strength Test Instrument

Specifications:
Paperboard Puncture Strength Tester
1. technology, LCD display
2.functions of test data processing and printout
3.puncture te
Paperboard Puncture Strength Tester

Main features:
(1) Computer-controlled technology, open structure, high automation procedures, simple and convenient operation, safe and reliable.
(2) Automatic measurement, intelligent judgement, real time display of clamping pressure for sample by operation system.
(3) Automatically measure, count, print the test results, and data can be stored.
(4) Micro-high-speed thermal printer, high-speed print, low noise, no need for ink and ribbons, and it is easy to use and has low failure rate.
(5) Modern design concept of electro-mechanical integration, it has compact structure, elegant appearance and convenient maintenance.

The main technical parameters:

Measuring Range	(1~48)J
Indication Error	Ruler A: ±0.05J; Ruler B: ±0.1J; Ruler C: ±0.2J; Ruler D: ±0.5J (within the limit range 20%~80% at each measurement)
Pointer Friction	<0.25J
Pendulum Shaft Friction and Air Resistance	>120 times ( Measured by the swing frequency of arm swing)
Triangular Pyramid	Side Length: 60×60×60 mm; Height: 25±0.7 mm; edge fillet Radius: 1.5±0.1 mm
Outside Dimension (L×W×H)	800×500×750 mm
Work Environment	Temperature: 5~35°C; Relative Humidity: ≤85%
Power	AC220V±10%, 2A, 50Hz
Weight	Appro. 140Kg

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Programmable Cardboard / Paperboard Puncture Strength Test Instrument

Programmable Cardboard / Paperboard Puncture Strength Test Instrument

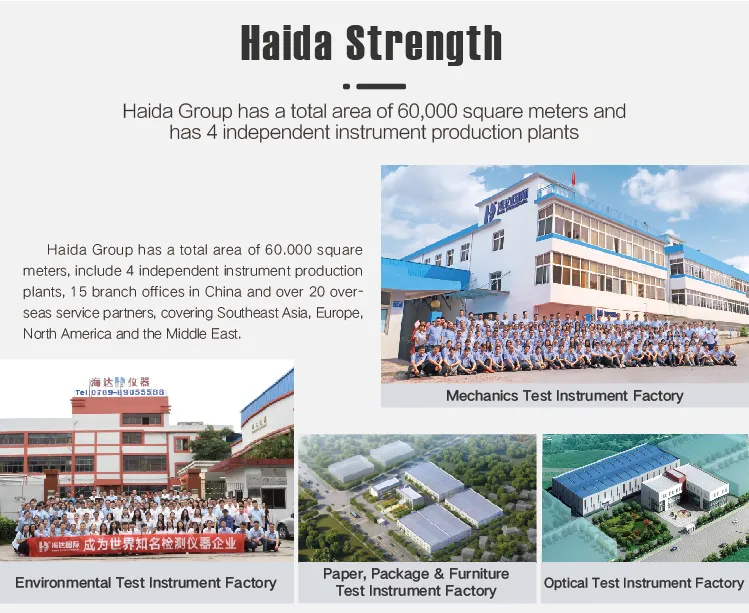

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Programmable Cardboard / Paperboard Puncture Strength Test Instrument

After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
