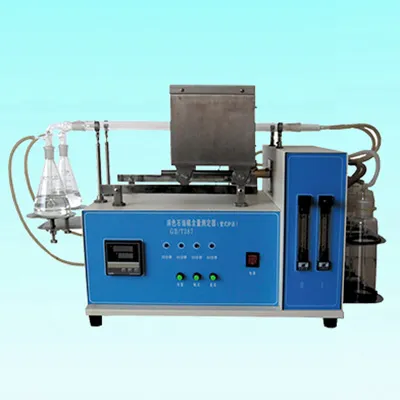

Quartz Tube Sulfur Apparatus (Quartz-Tube Method)

Item: Quartz Tube Sulfur Apparatus (Quartz-Tube Method)
Model: PT-HK-2012 (PH-HK-2012A)

Overview
Quartz tube sulfur apparatus (Quartz-Tube Method) conforms to the ASTM D1551 Method of Test for Sulfur in Petroleum Oils (Quartz-Tube Method). Applicable to test sulfur content of lubricating oil, heavy oil products, crude oil, petroleum oil coke, paraffin wax, Sulfur-containing additives and other deep color petroleum products what sulfur content is more than 0.1% (m/m).
PT-HK-2012: 2 tubes
PT-HK-2012A: 3 tubes

Features
1.The apparatus adopts digital temperature controller, high precise temperature control.
2. User can set experimental time by own, suits for all kinds of test requirement, alarm when the test finishes.
3. Microchip controls the trip of tubular furnace automatically.
4. The apparatus adopts 2tubes (3tubes) Furnace device. Digital display temperature control the tube temperature accurately.
5. Rational construction with attractive appearance and easy operation.

Technical parameters
1.Rated voltage:AC220V±10% 50Hz
2.Power:3000W
3.Method of temperature control: Digital temperature controller
4.Sensor:K-type thermodynamics
5.Temperature controlling range:900~950°C
6.Tubular tube route:150mm
7.Stroke time:30 40 50 60min adjustable
8.Flowmeter:100~1000ml/min
9.Ambient requirements: Temperature: 10~40°C; Humidity ≤85%
10. Net dimension: 570*400*470mm,20kg
