Servo Control Computer System Double Rail Universal Tensile Testing Machine
Servo Control computer System double Rail Universal Tensile Testing machineServo Control computer System double Rail Universal Tensile Testing machine purpose The series's tensile strength testers are widely applied to determining elongation, compression, flexing, tear, peeling, shear force, adh......
Send Inquiry
Product Description
Servo Control computer System double Rail Universal Tensile Testing machine
Servo Control computer System double Rail Universal Tensile Testing machine purpose
The series's tensile strength testers are widely applied to determining elongation, compression, flexing, tear, peeling, shear force, adhesive force, etc. Of finished or semifinished products such as rubber, plastic, footwear, leathers, metal, wire, paper, timber, tec.
The accessories such as the different grips, elongation messuring-devices etc. Are equipped according to the requirements specified in the contract., our sales representative will also give the proper suggestions to our customer beforehand.
Servo Control computer System double Rail Universal Tensile Testing machine specifications
Company Introduction
Dongguan HongTu Instrument Co.,Ltd specilizes in developing and producing testing machines
We are the largest testing machine production factory in China , We treasure the value of good quality , reasonable price and efficient service with customer satisfaction . we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products

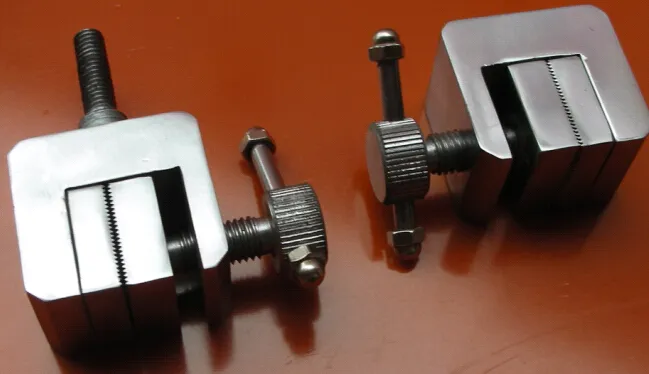

Servo Control computer System double Rail Universal Tensile Testing machine's parts
Servo Control computer System double Rail Universal Tensile Testing machine purpose
The series's tensile strength testers are widely applied to determining elongation, compression, flexing, tear, peeling, shear force, adhesive force, etc. Of finished or semifinished products such as rubber, plastic, footwear, leathers, metal, wire, paper, timber, tec.
The accessories such as the different grips, elongation messuring-devices etc. Are equipped according to the requirements specified in the contract., our sales representative will also give the proper suggestions to our customer beforehand.
Servo Control computer System double Rail Universal Tensile Testing machine specifications
| Model | HT-7000-1 | HT-7000-2 | HT-7000-3 | HT-7000-4 | HT-7000-5 | HT-7000-6 |
| Capacity (optional) | 50kN, 100kN | 200kN | 300kN | 500KN | 1000KN | |
| Unit(Switchable) | kgf, lbf, N, kN, kPa, Mpa | |||||
| Load Resolution | 1/200,000, 1/300,000 or specified by user | |||||
| Load Accuracy | ±0.25 | |||||
| Load Range | Rangeless(full scales at teh same amplification) | |||||
| Stroke(exclude the grips) | 1050mm | 1280mm | ||||
| Effective width | 570mm | 730mm | ||||
| Test speed | 0.001~500mm/min selectable | 0.001~250mm/min s selectable | 0.001~200mm/min | |||
| Speed Accuracy | ±0.5% | |||||
| Stroke Resolution | 0.00003mm | |||||
| Sample Rate | 200 times/sec | |||||
| Communication Interface | USB 2.0 system | |||||
| Motor | AC motor | |||||
| Dimension(W*D*H) (Main unit) | 114*70*210cm | 126*80*220cm | 126*85*250cm | 128*90*275cm | 142*110*320cm | |
| Computer /Desk | 165*65*80cm | |||||
| Weight(Main Unit) | 717kg (exclude the grips | 1050kg(exclude the grips) | 1230kg(exclude the grips) | 1750kg(exclude the grips) | 2500kg(exclude the grips) | |
| Comput /Desk | 102kg | |||||
| Power | 220V 20A /380V,15A or specified by user | 220V, 25A /380V,20A or specified by user | ||||
Company Introduction
Dongguan HongTu Instrument Co.,Ltd specilizes in developing and producing testing machines
We are the largest testing machine production factory in China , We treasure the value of good quality , reasonable price and efficient service with customer satisfaction . we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
Servo Control computer System double Rail Universal Tensile Testing machine's parts
