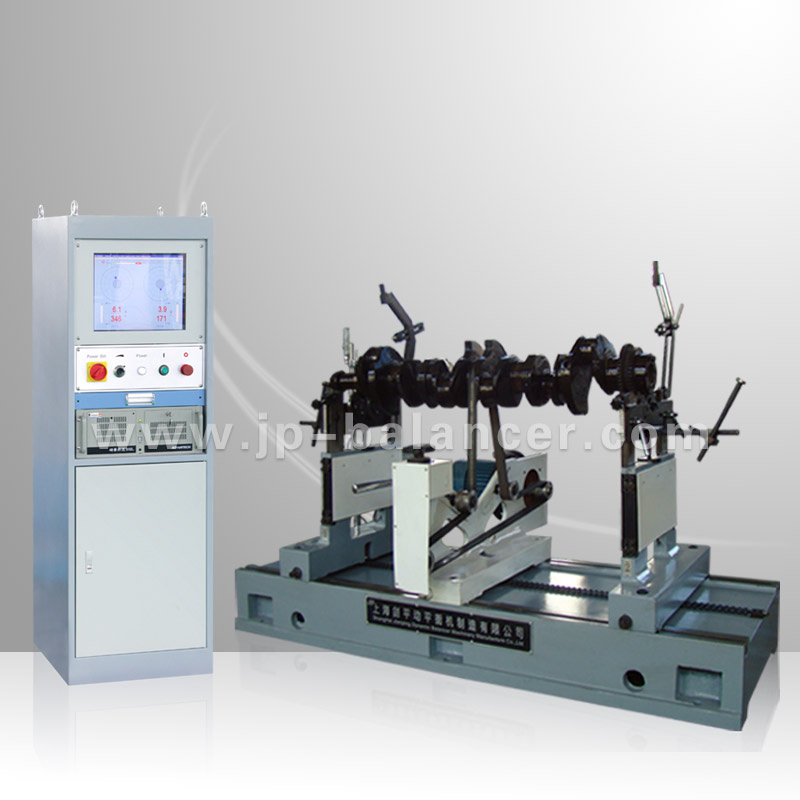

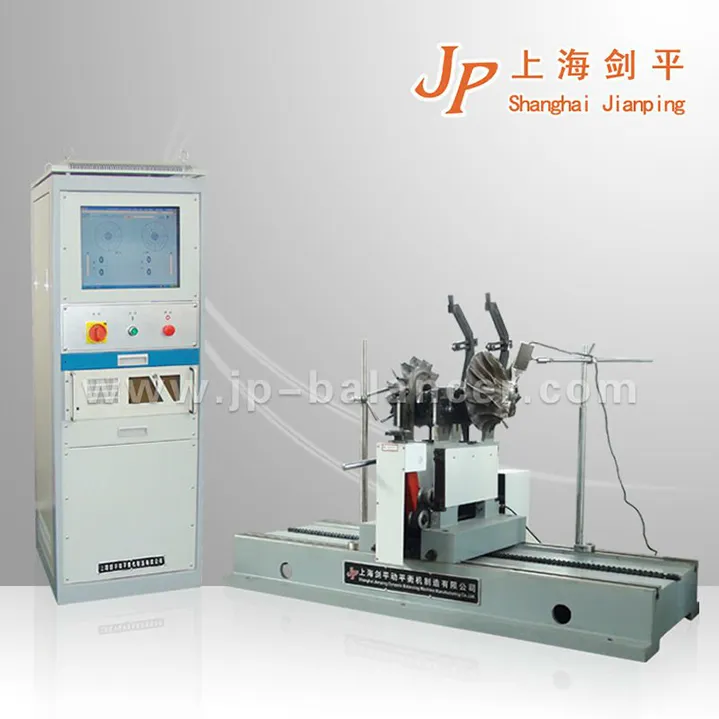

Shaft Balancing Machine Phq- 160h
Production DescriptionSpecially designed brackets transmit mechanical force with low vibration dampingDurable and reliable sensor possesses good linearityPermanent calibration brings high accuracy with a permission of large initial unbalance amountBelt-driving offers higher precision and easier oper......
Send Inquiry
Product Description
Production Description
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount

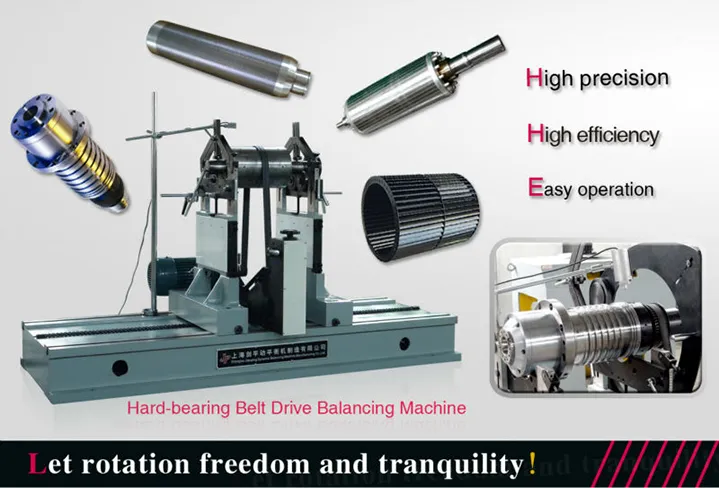

Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

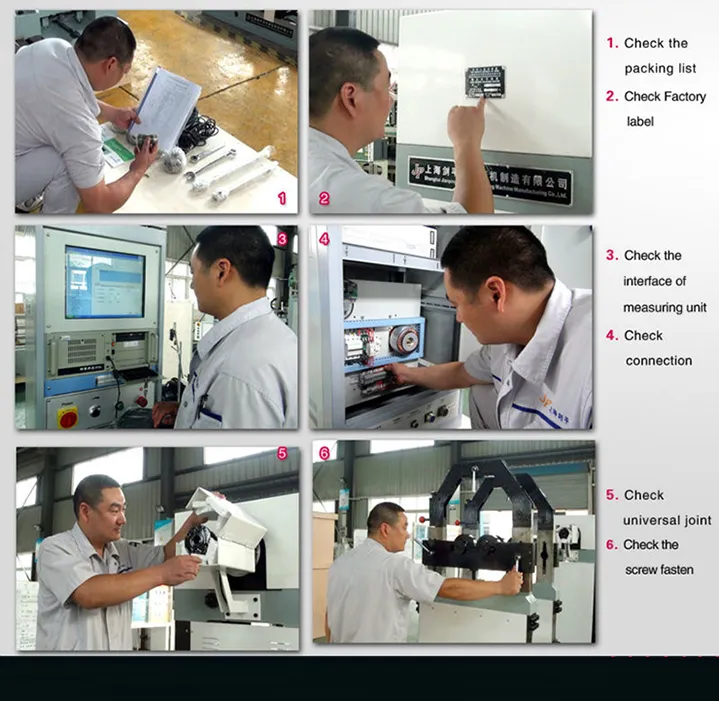

Delivery inspection
Range of Application

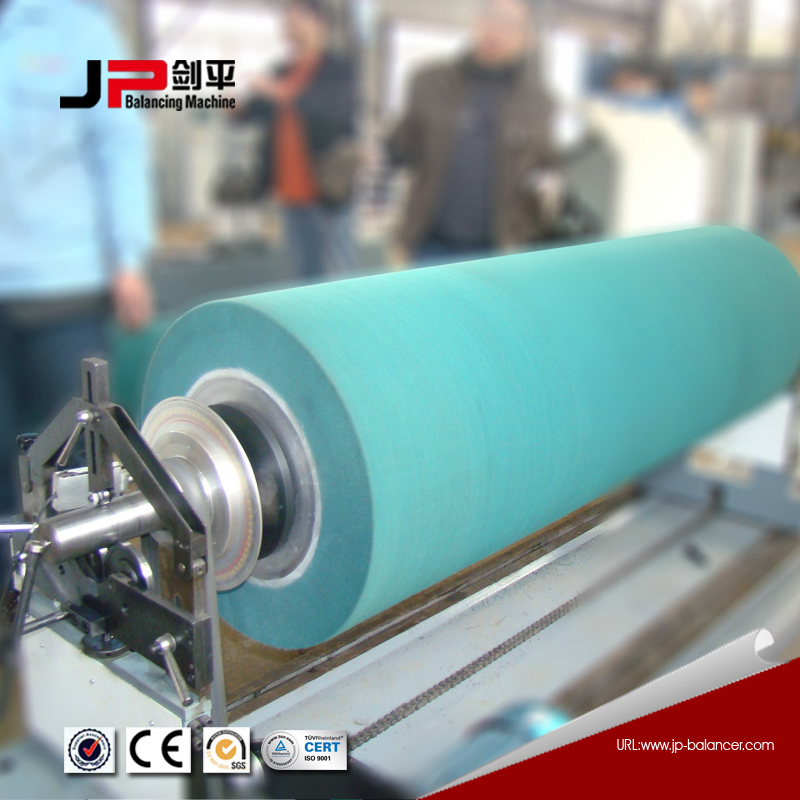

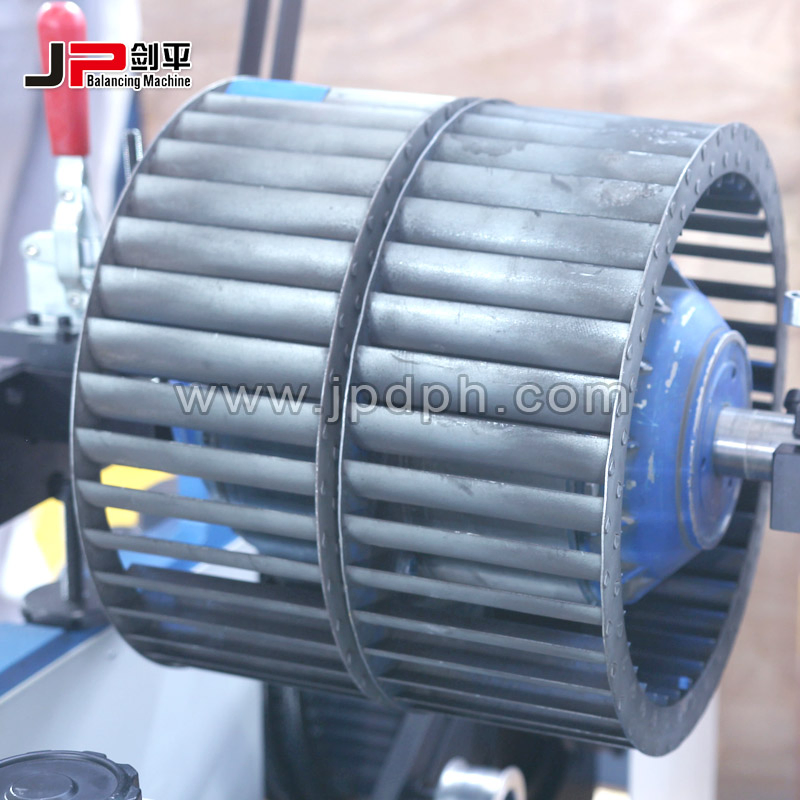

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

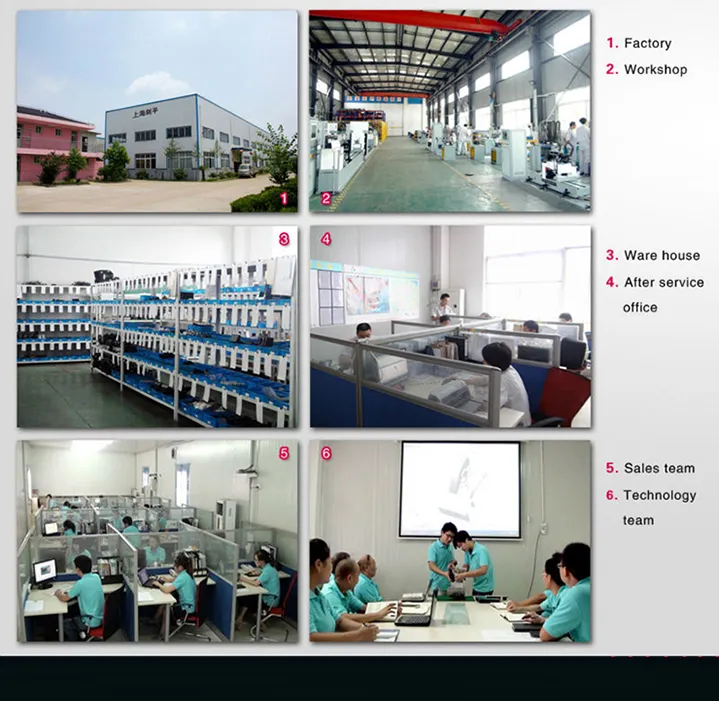

Factory Outlook
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

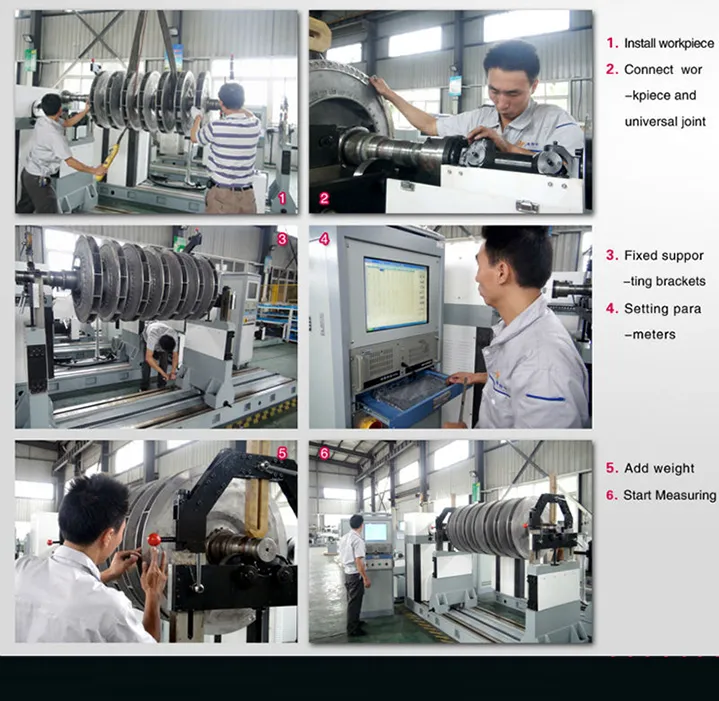

Workshop debugging
Certificates
Production Parameters
| Technical data at a glance | PHQ-160 | PHQ-300 | PHQ-500 |
| Max Mass of Workpiece (kg) | 160 | 300 | 500 |
| Max Diameter of Workpiece (mm) | 1000 | 1220 | 1500 |
| Distance between Two Support Bearings (mm) | 150~1200 | 150~1200 | 150~1200 |
| Journal Diameter Scope of Workpiece (mm) | 15-75(can increase to75-180) | 15-75(can increase to75-180) | 15-75(can increase to75-180) |
| Diameter Scope of Driving Belt (mm) | 30~350 | 40~400 | 40~400 |
| Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 756,1176 +Stepless speed regulation | 756,1176 +Stepless speed regulation | 756,1176 +Stepless speed regulation |
| Motor Power (kw) | 1.5 Frequency conversion | 1.5 Frequency conversion | 2.2 Frequency conversion |
| Min Achievable Residual Unbalance Amount(emar) | 0.5g.mm/kg | 0.5g. mm/kg | 0.5g. mm/kg |
