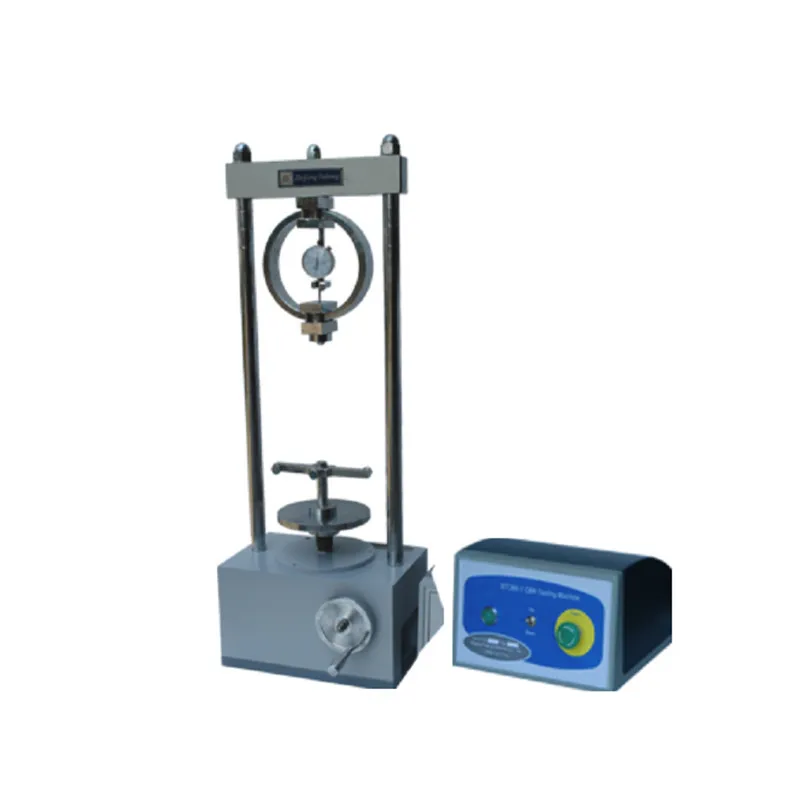

STCBR-1 California Bearing Ratio CBR Tester
STANDARD: BS 1377, 1924; EN 13286-47;ASTM D1883; AASHTO T193
General description:

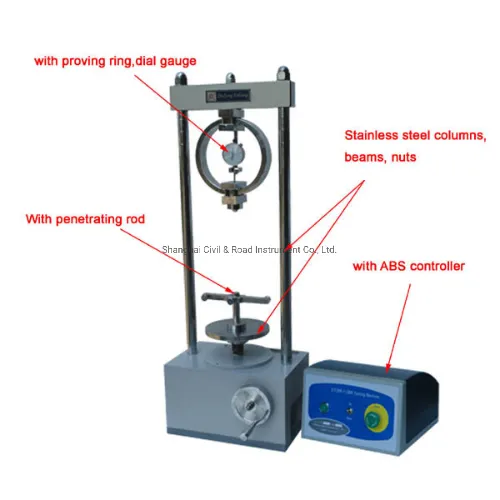

The machine features a rigid two-column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can operated both by motor and manual handle.
Accessories:
Guide bracket and ball seating, adapter to fit pressure transducer, pressure transducer 50KN cap., connector pressure transducer/accessory, adjustable CBR penetration piston, adjustable transducer holder, displacement transducer, digital controller plus data acquisition and processing system and so on.
Specification
STANDARD: BS 1377, 1924; EN 13286-47;ASTM D1883; AASHTO T193
General description:
The machine features a rigid two-column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can operated both by motor and manual handle.
Accessories:
Guide bracket and ball seating, adapter to fit pressure transducer, pressure transducer 50KN cap., connector pressure transducer/accessory, adjustable CBR penetration piston, adjustable transducer holder, displacement transducer, digital controller plus data acquisition and processing system and so on.
Specification
| Max. Load capacity | 30kN,50kN |
| Test speed | 1 mm/min (BS standard ) or 1.27 mm/min (ASTM/EN standard) |
| Size of the penetration rod | Dia. 50×100mm |
