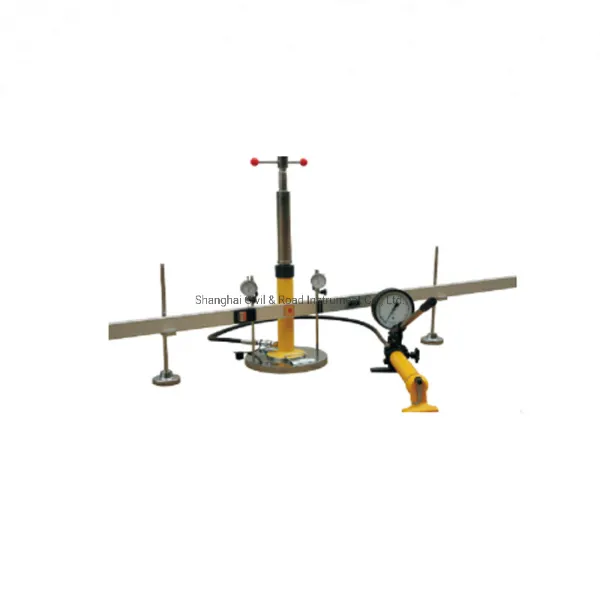

STK-30 Plate Bearing equipment
Standard: ASTM D1194, D1195, D1196 - BS 1377:9 - CNR No. 92 and No. 146 - DIN 18134
Application: Plate Bearing Testing Apparatus used to estimate bearing capacity of road base or ground base, which is filled and compacted after coarse and fine grained soil, also can used to count deformation modulus of even groundsill.
Specification:
| Product Name | Ground Bearing Plate Test |
| Load plate | 300mm |
| Hydraulic jack Max. load | 5T |
| Hydraulic jack journey | 120mm |
| Span | 3000mm |
| Electric oil pump rated pressure | 70MPa |
| Pressure range | 0-25MPa |
| Displacement range | 0-10mm |
| Use engine oil | number 15 engine oil |
| Use temperature environment | 5ºC-45ºC |
