Stm-3 300kn Universal Electric Hydraulic Extruder
STM-3 300kN Universal Electric Hydraulic ExtruderASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with in......
Send Inquiry
Product Description

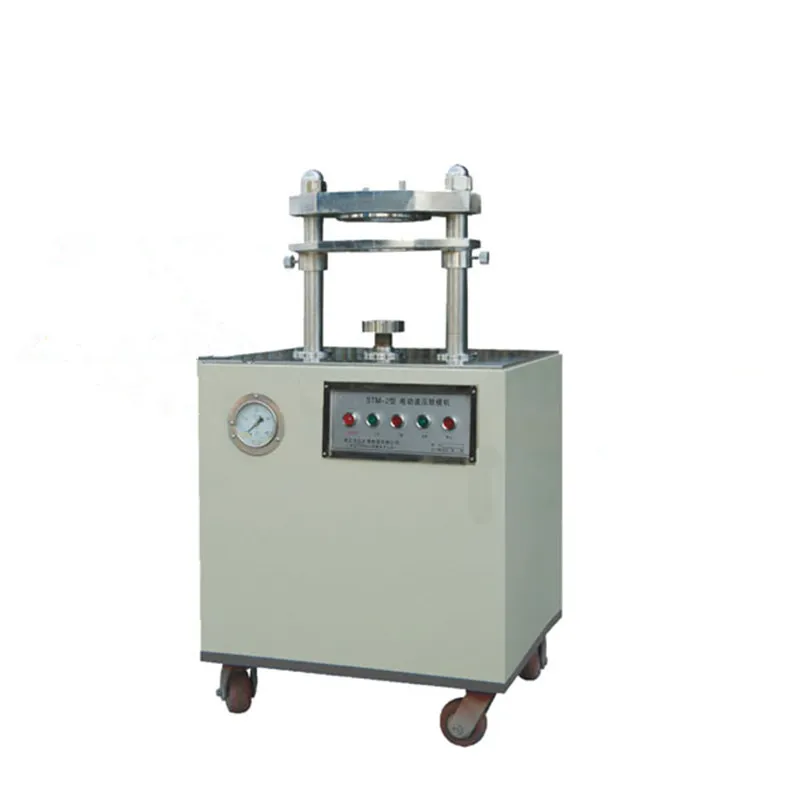

STM-3 300kN Universal Electric Hydraulic Extruder
ASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2
Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.
The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. Hydraulic Universal Extruder can quickly eject the specimen from the mold and easy to operate.
ASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2
Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.
The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. Hydraulic Universal Extruder can quickly eject the specimen from the mold and easy to operate.

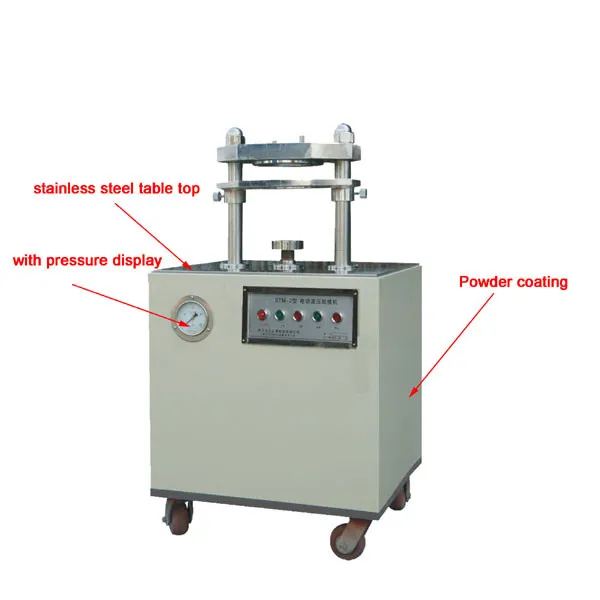

| Stainless steel working table | overload protection |
| Automatic off load | when overload |
| Size of sample | Φ100,Φ101.6,Φ102,Φ150,Φ152(mm) |
| Max. axial output load | 300kN |
| Piston stroke | 250mm |
| Working voltage | AC380V±10%,AC220V±10% |
