Sy-261d Petroleum Instrument of Fully Automatic Closed Flash Point Tester

Product Description

SY-261D Petroleum Instrument of Fully Automatic Closed Flash Point Tester

Information for orders

Name	Model	Technical Features	Standards	Applicate Range
Fully-automatic Pensky-martens Closed Cup Flash Point Tester	SY-261D	Fully-automatic	GB/T261-2008 ISO2719 ASTM D93	It is suitable to determine the flash point of petroleum products, and with flash points above 40ºC and below 300ºC.
Automatic Pensky-martens Closed Cup Flash Point Tester	SY-261A	Fully-automatic	Ditto	Ditto

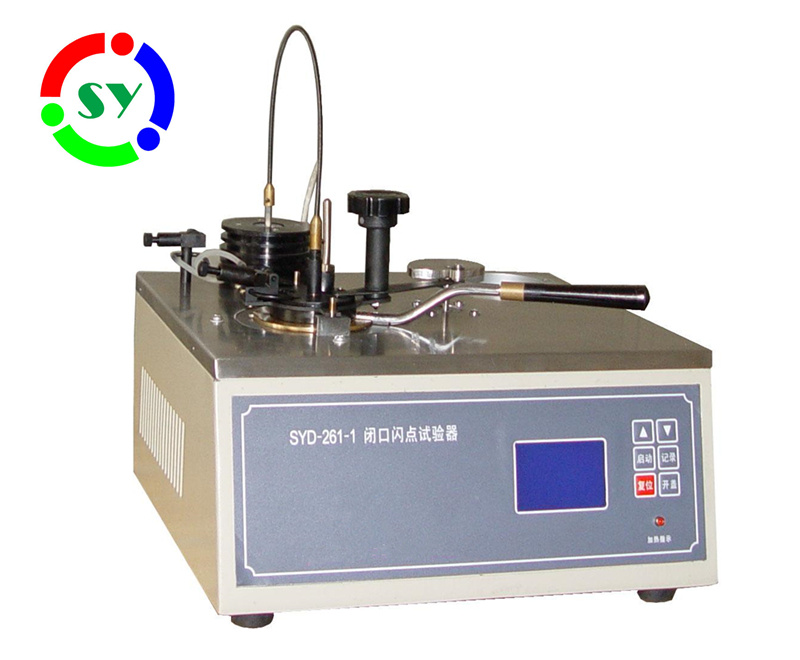

Closed Cup Flash Point Tester	SY-261-1	Programmed temperature control, LCD display and A&B process	Ditto	Ditto
Closed Cup Flash Point Tester	SY-261	Manual	Ditto	Ditto
Rapid Low Temperature Closed Cup Flash Point Tester	SY-5208	Automatic finished except manual ignition	GB/T 5208-2008 ISO 1523 ISO 3679	It is special for the less samples determination, such as colored paint,paint,adhesive,solvent,petroleum and other relevant products which flash point is -30ºC~50ºC.
Rapid Low Temperature Closed Cup Flash Point Tester	SY-5208D	Automatic finished except manual ignition	GB/T 5208-2008 ISO 1523 ISO 3679	It is special for the less samples determination, such as colored paint,paint,adhesive,solvent,petroleum and other relevant products which flash point is 0ºC~100ºC.

Orders Comparison List

Model	SY-261	SY-261-1	SY-261A	SY-261D	SY-5208	SY-5208D
Standard	GB/T261	GB/T261	GB/T261	GB/T261	GB/T5208	GB/T5208
Range	(40~300)ºC	(40~300)ºC	(40~300)ºC	(40~300)ºC	(-30~50)ºC	(0~100)ºC
Repeatability	2ºC(≤104ºC) 6ºC(>104ºC)	2ºC(≤104ºC) 6ºC(>104ºC)	Flash point ≤104ºC:error2ºC; Flash point>104ºC:error6ºC;	2ºC(≤104ºC) 6ºC(>104ºC)	Absolute difference between two experimental results<2ºC(Same operator) <3ºC(Different operators)
Reproducibility	4ºC(≤104ºC) 8ºC(>104ºC)	4ºC(≤104ºC) 8ºC(>104ºC)	Flash point ≤104ºC:error4ºC; Flash point>104ºC:error8ºC;	4ºC(≤104ºC) 8ºC(>104ºC)
Automatic up/down	No	No	Yes	Yes	No	No
With microprinter	No	No	Yes	Yes	Yes	Yes
Display	No	Digital display	Yes	Yes	Yes	Yes
Communication port	No	No	No	Yes	No	No
Sample	Standard oil cup	Standard oil cup	Standard oil cup	Standard oil cup	2mL	2mL
Automatic detect	No	Automatic heating up	Yes	Yes	Yes	Yes

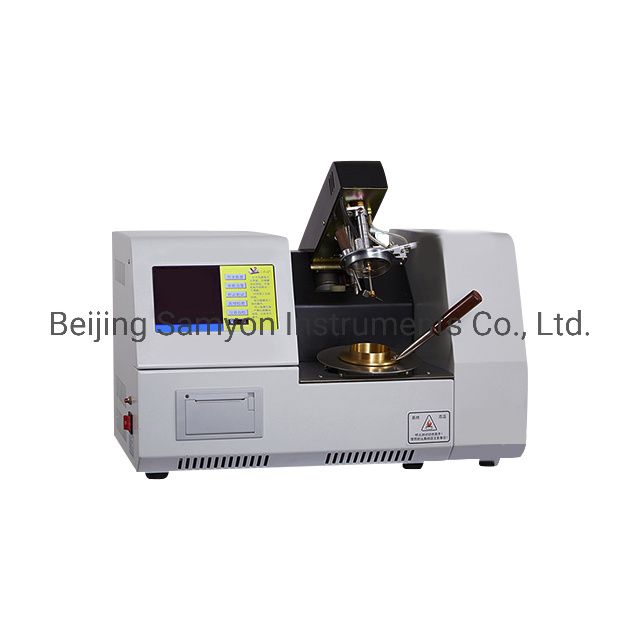

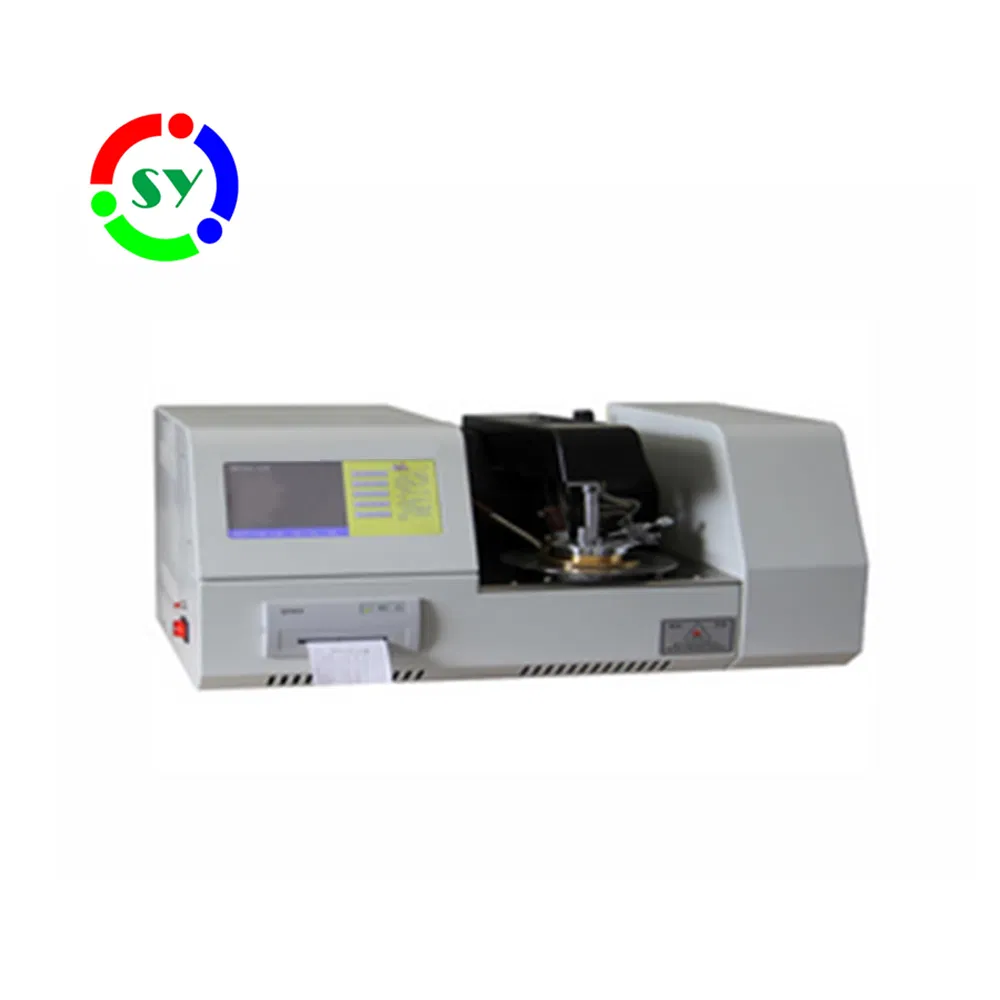

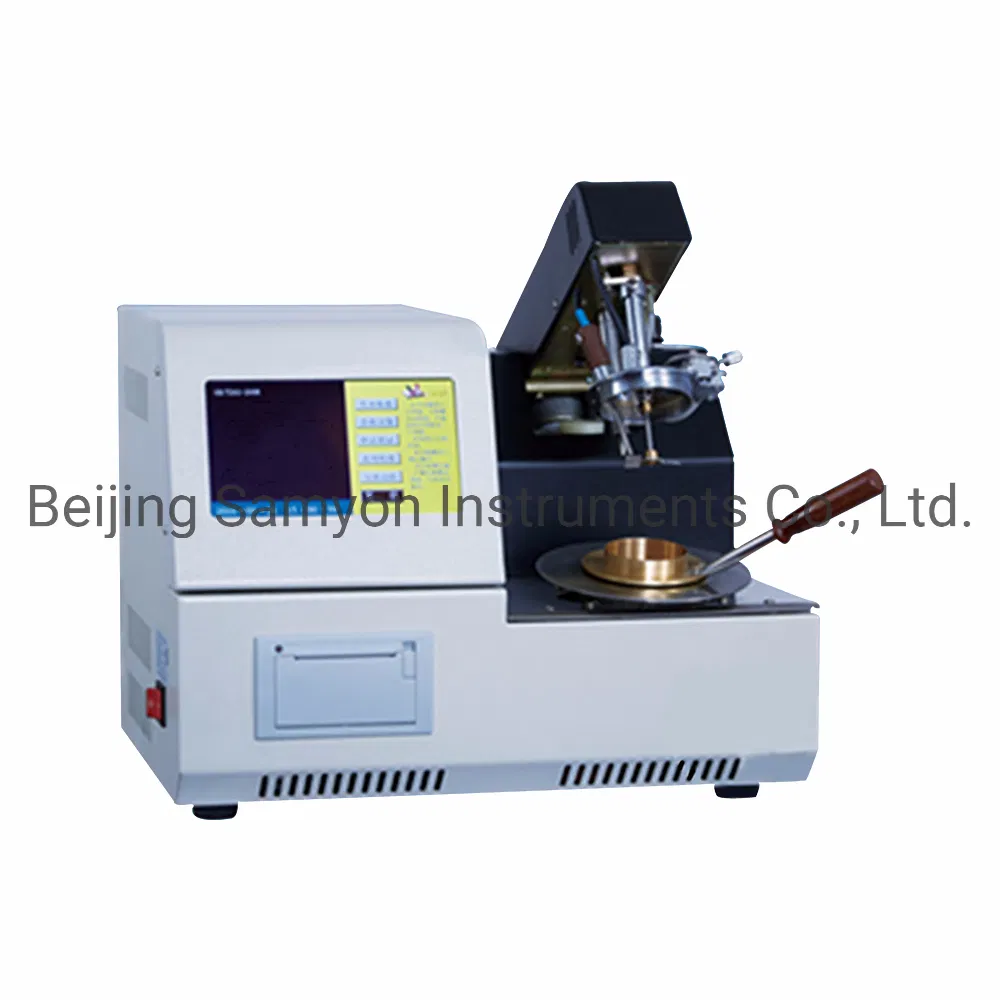

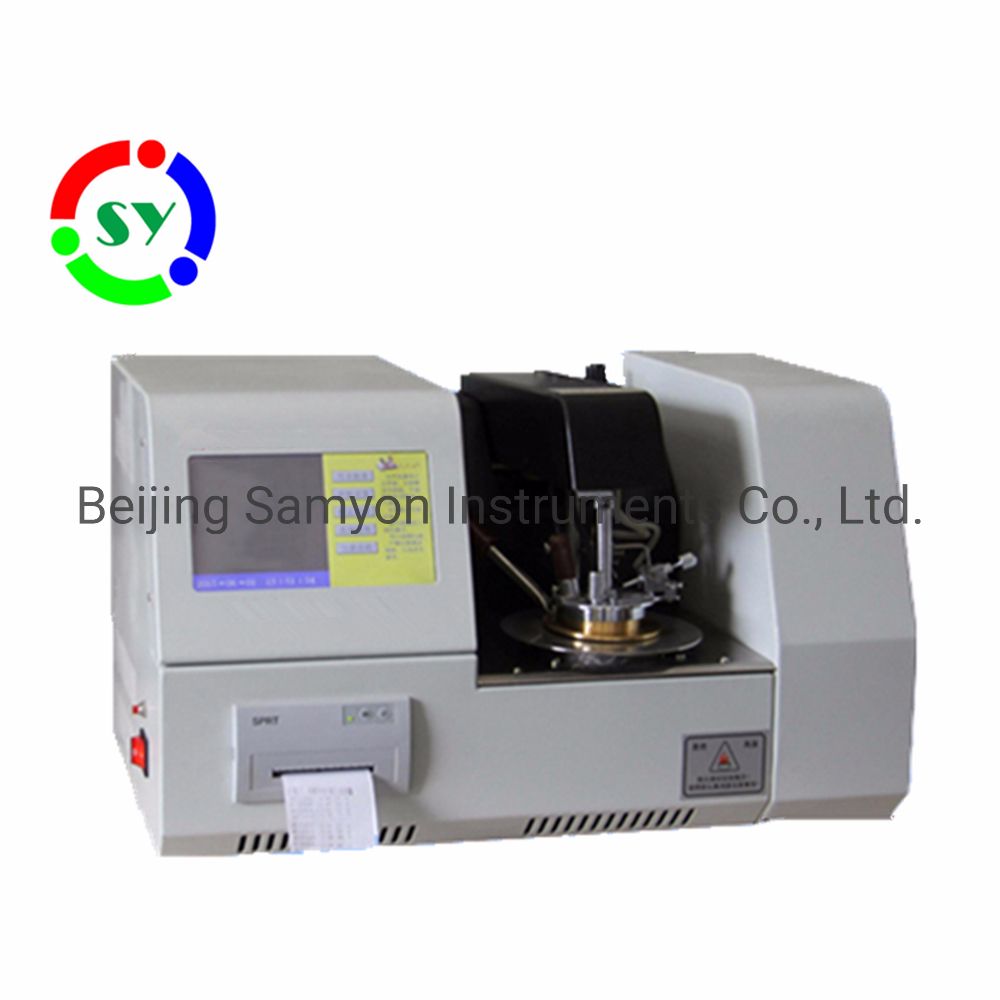

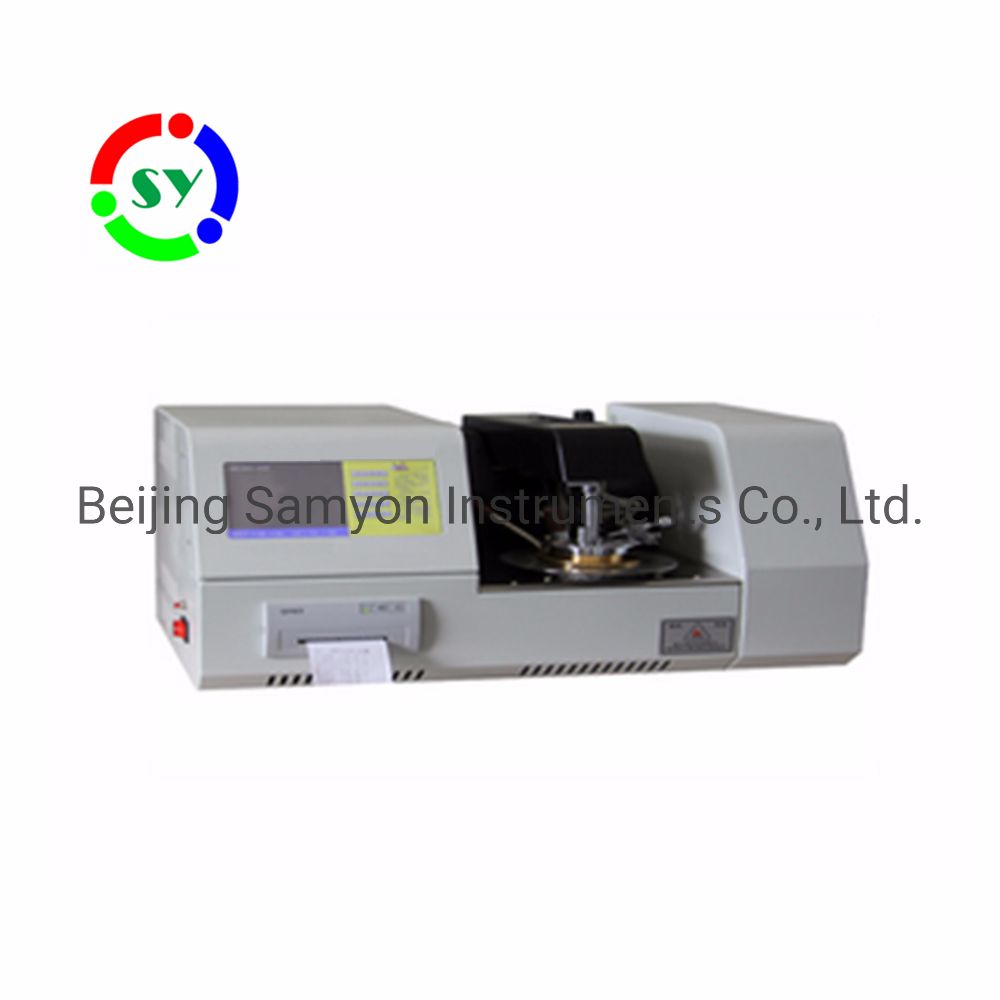

SY-261D Full-Automatic pensky-Martens Closed Cup Flash Point Tester
This instrument is designed and manufactured according to the requirements stipulated in GB/T 261-2008 "Binski-Martin Closed Cup Method for Flash Point Measurement". It is suitable for the determination of flash points of flammable liquids, liquids with suspended particles, liquids tending to film on the surface under test conditions and other liquids according to the method specified in this standard. It can be widely used in petroleum industry, railway, aviation, electric power, relevant universities and scientific research institutes.
This instrument is suitable for samples with flash point higher than 40 C.

I.Technical Features

1.Colored touch LCD screen,man-machine dialogue interface in English,it can be preset the parameters of expected flash point,sample ID,atmospheric pressure,test date,etc.It is with menu to prompt and input function of guide type.
2.It can simulate and show temperature-time curve.It has prompt function to modify operation error.It also has prompt function for test data,test time and other parameters.
3.With RS 232(option external USB),can store 10 pages,120 groups of historical data,and communicate to computer to storage data;
4.Automatically calibrate the atmospheric pressure and calculate the corrected value;
5.Differential detection;the system error can be automatically modified.
6.Scan,flash &fire point detection,data printing automatically.The test arm can be up and down automatically.
7.Electronic ignition,forced air cooling(Note:manual igniting button is located on the left side of instrument).

II.Technical Parameters

Power Supply	AC(220±10%)V,50Hz;
Test Range	(40~300)ºC;
Stirring rate	a.Process A:(90~120)RPM b. Process B:(240~260)RPM
Igniting mode	gas flame,electric ignition.
Test condition	ambient temperature:(10~40)ºC
Total power consumption	≤500W
