Product Description

Water Cooling Type Solar Radiation Test chamber for PV panels
Product introduction:

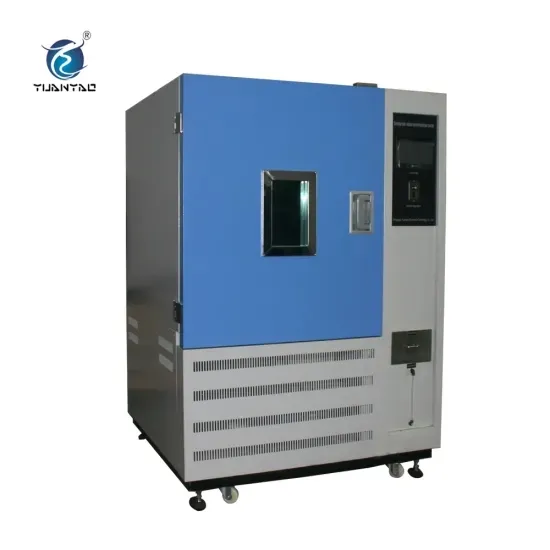

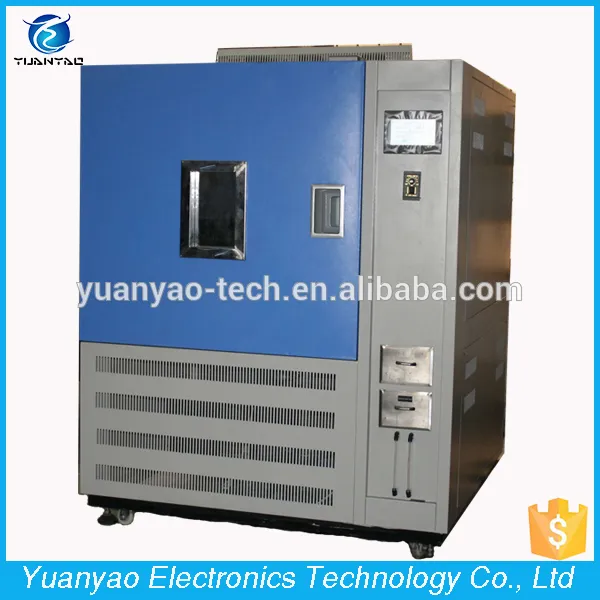

Test Equipment Water Cooling Type Solar Radiation Test Chamber Machine for PV Panels

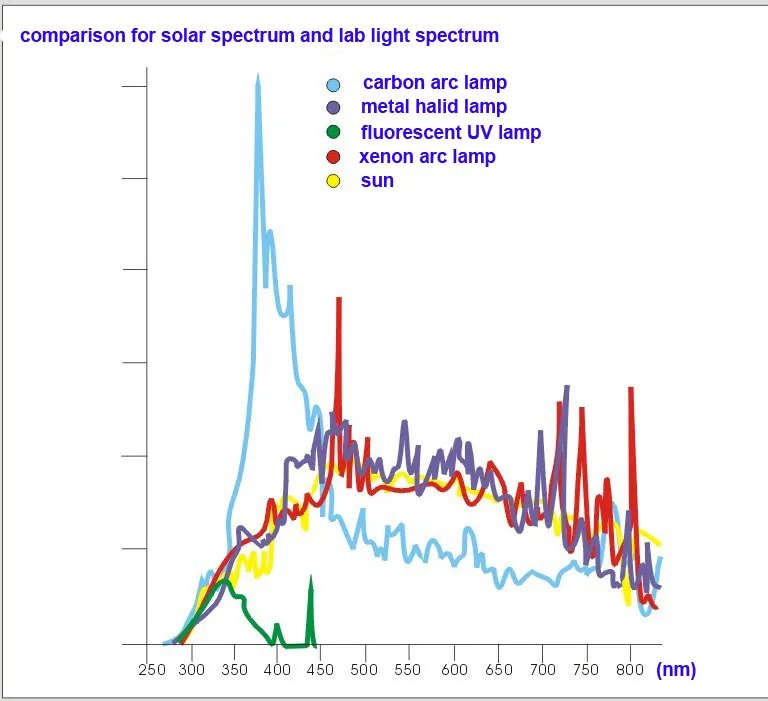

solar radiation test chamber, also known as "sunshine radiation protection test device", simulates full sunlight spectrum xenon arc lamp to represent the destructive waves under different environment. It is used for scientific research, product development and quality control to provide the corresponding environmental simulation and acceleration test. According to test standard and test method, It is devided into air cooling xenon lamp, air cooling xenon lamp and bench top xenon lamp. The differences for the three types are test temperature, test humidity, test time, etc.

International test standard:

ISO 4892-2:2006, ISO 11341-2004, ASTM G155-05a, ASTM D2565-99, ASTM D4459-06, ASTM D6695-03.

Features:

1 equipped with blackboard thermometer to adjust the test temperature in the chamber.

2 can control xenon arc lamp light time.

3 Control water spray cycle.

4 Water circulation.

5 automatic constant temperature(circulating water cooling)

6 LCD touch screen controller can independantly control water spray, light, temperature, humidity, rotary table.

7 large glass observation window

8 water shortage and over temperature faulty alarm.

9 irradiation meter displays light intensity in the chamber.

10 Customization is welcomed and available.

11 Equipped with castors and feet, which helps users to move the test chamber easily.

12 One year free accessories maintenance.

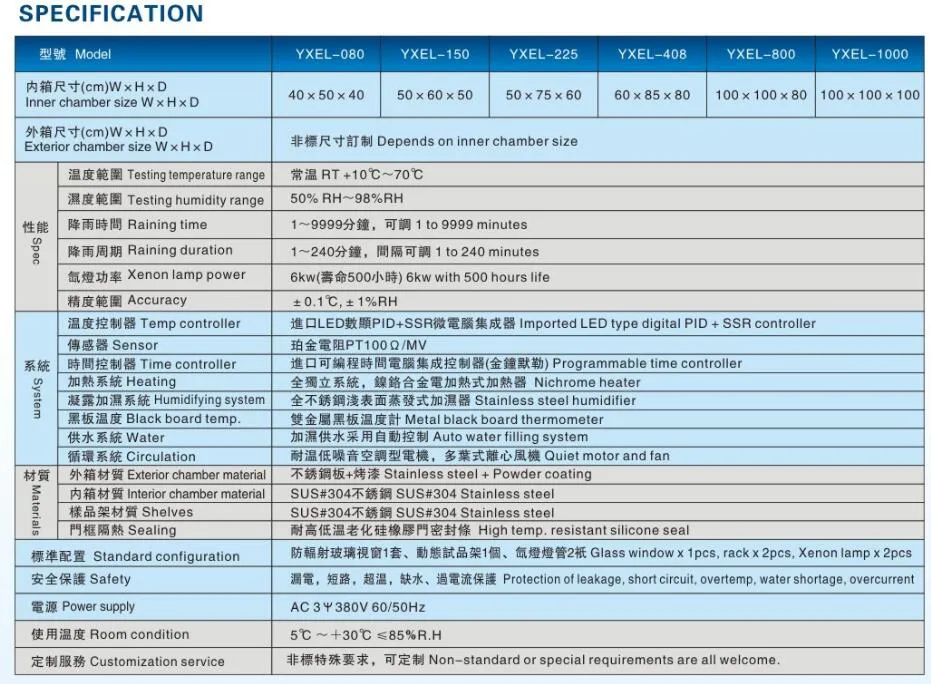

Specification

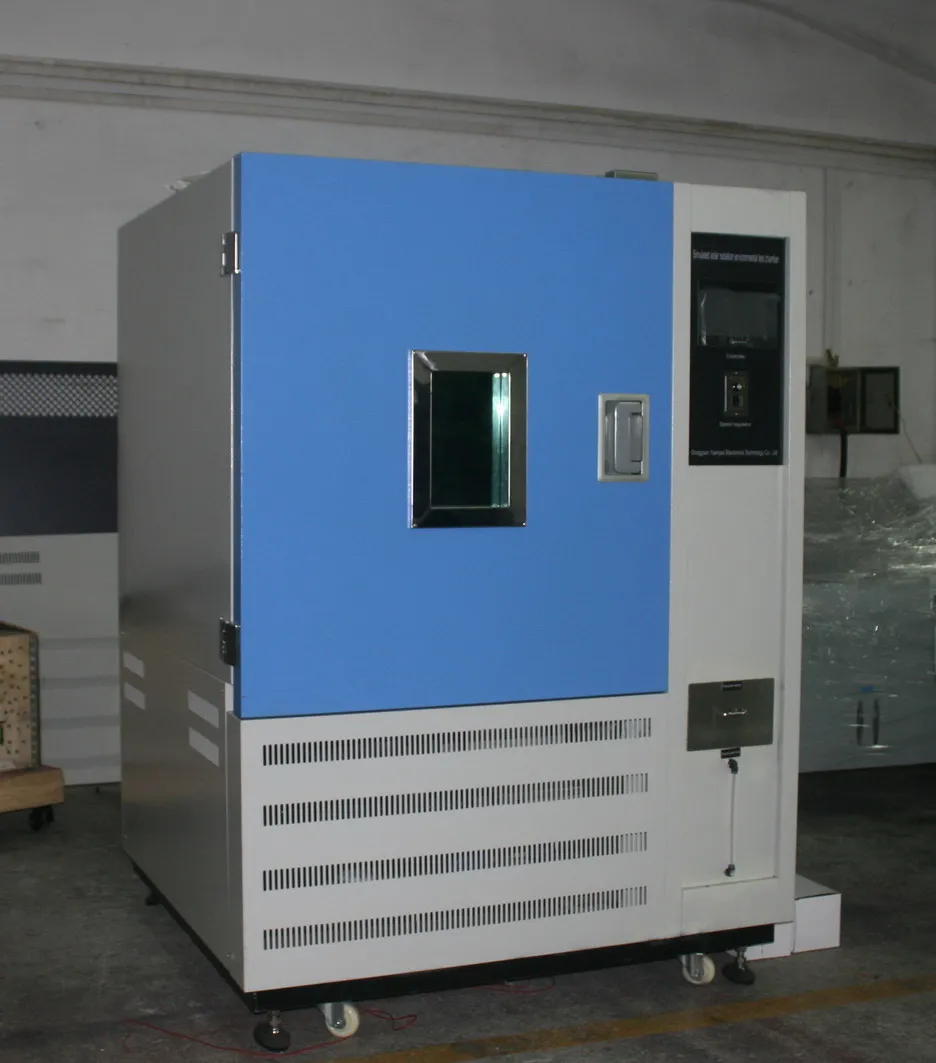

Water Cooling Type Solar Radiation Test Chamber for PV Panels

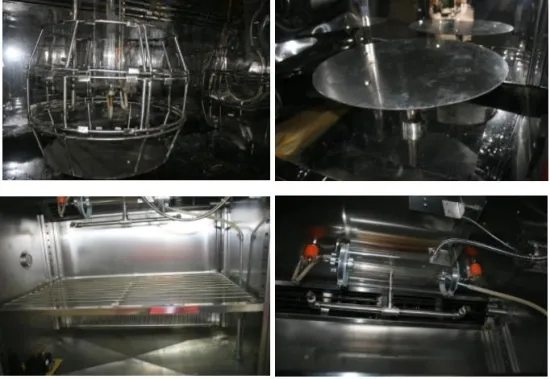

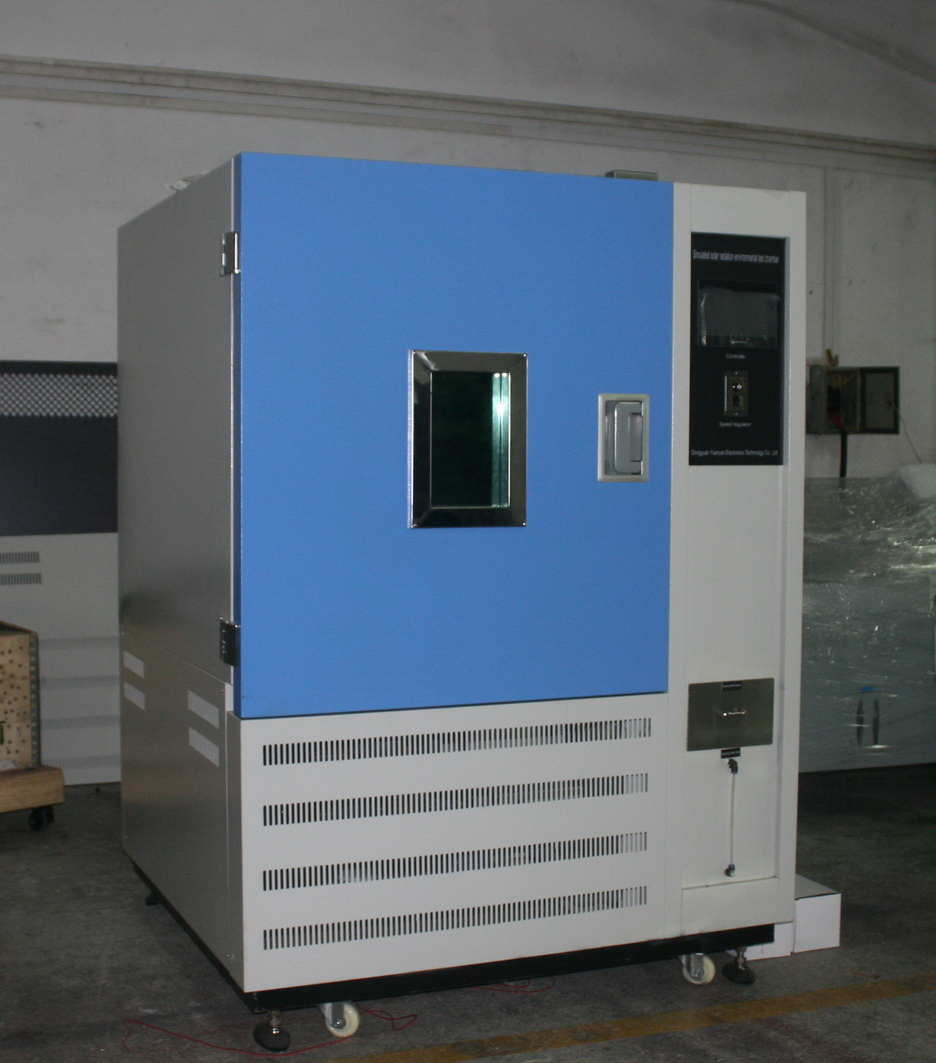

Photos

If you are interested in our solar radiation test chamber, please directly contact us, I will be here to reply you within 24 hours during the working time, many thanks for your attention.
