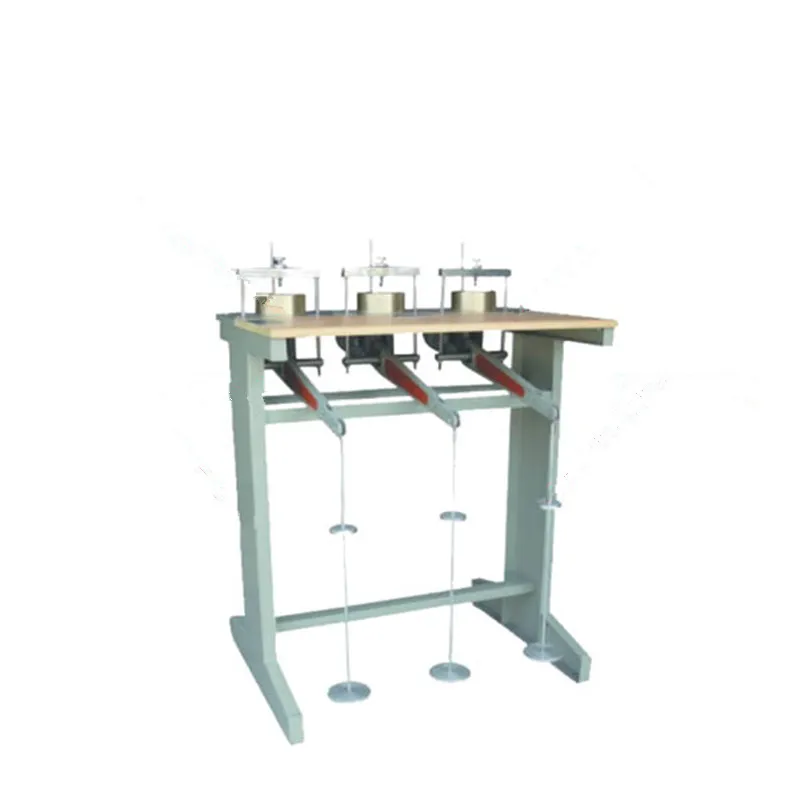

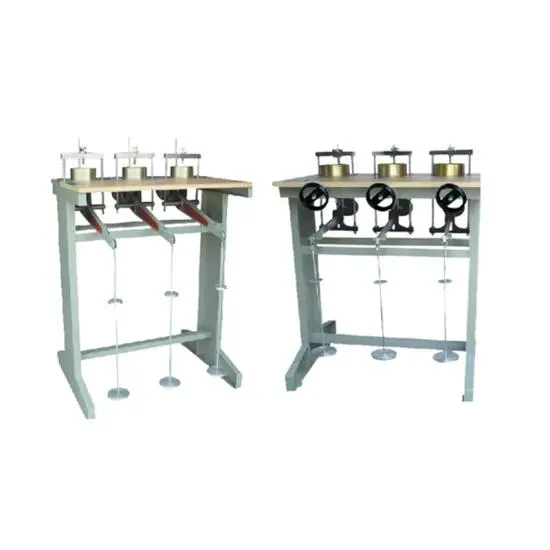

Triplex Low-Pressure Oedometer Front Loading
Triplex Low-pressure Oedometer Front LoadingStandard:BS 1377:5 ASTM D2435, D3877Feature:This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form.Stress points use bearing structure.Application:The instrument is used to carry out the compre......
Send Inquiry
Product Description
Standard:BS 1377:5 ASTM D2435, D3877

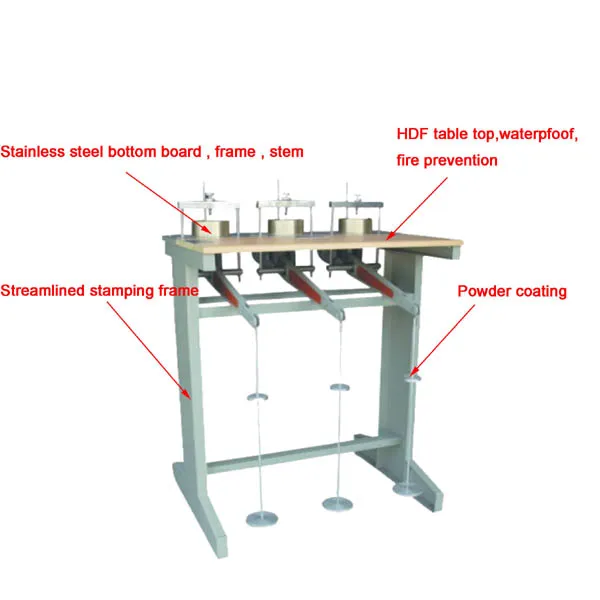

Feature:This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form.Stress points use bearing structure.
The instrument is used to carry out the compression test of soil, determine the relationship between soil deformation and pressure or pore ratio and pressure, and the relationship between deformation and time, calculate the unit settlement of soil, compression coefficient and index, rebound index, compression modulus, Consolidation factor, etc., the measurement items are determined by engineering needs.
It is a midium pressure consolidation instrument after the low pressure consolidation instrument. It can be used for both low pressure test and medium pressure test.
Specification:
| Model | WG-1C |
| Specimen area | 30cm2, 50cm2 |
| Specimen number | 3 |
| Pressure range | 12.5-800KPa |
| Load grade | 12.5, 25, 50, 100, 200, 300, 400, 800 |
| Lever ratio | 12: 1 (mid and low pressure) Lever ratio : 12:1 (Mid and low pressure) 20:1, 24:1 (High pressure) |
| Frame | Steel structure |
Packing & Shipping
Packing Material: Out packing:Standard export wooden case; Inner packing:With careful stretch film+ hard cardboard.
Packing Method: Horizontal Packing to saving more shipping cost.
You can specify other shipping methods such as Airfreight, FEDEX or DHL.
We shall let you know about the shipping cost after receiving on your order.
Or tell us your own FEDEX/DHL account number, so the delivery cost can be charged directly from your account.
