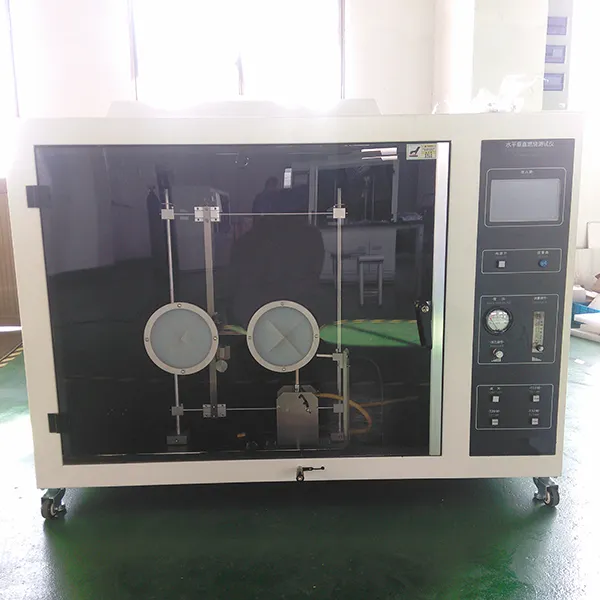

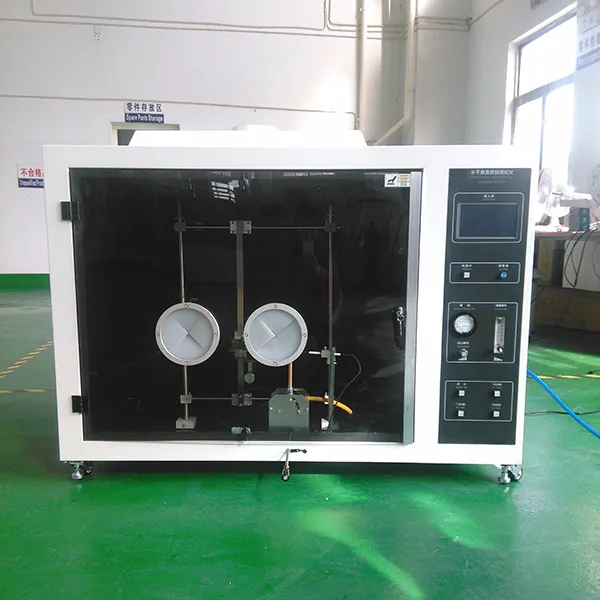

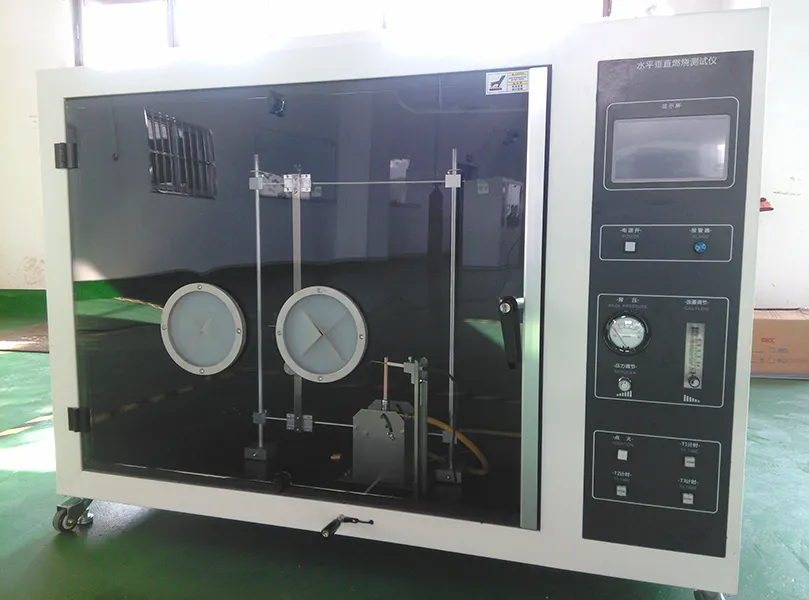

UL94 Horizontal/Vertical Flame Chamber Tester
Introduction:
Introduction:
UL94 horizontal and vertical combustion instrument adopts the design idea of full standard satisfaction and takes into account many test standards. It is integrated into a test box.Designed as UL standard flammability test for equipment and appliance component materials, the horizontal and vertical combustion instrument is designed to test numerous end-use test indicators, such as flammability, combustion rate, flame spread, combustion intensity and flame retardancy of products.
Standards:- Horizontal burning test:UL HB,IEC 60695-11-10,IEC 60707,ISO 1210,GB/T 2408;
- 50W vertical burning test:UL94 V0,V1,V2,IEC 60695-11-10,ISO 1210,GB/T 2408;
- 500Wvertical burning test: UL94 5VA,5VB,IEC 60695-11-20,ISO 9770,GB/T 5169.17;
- Thin-film material burning test: VTM-0,VTM-1,VTM-2,ISO 9773;
- Foam material burning test: HF-1,HF-2,HBF,ISO 9772,GB/T 8332;
- Combustion chamber 0.7 CBM.
- Large view window made of Acrylic sheet;
- Working table cabinet is optional;
- Burner calibration kit is optional;
- Burner angel adjustable 0, 20, 45;
- Humboldt Tirrill burner made in USA inner diameter 9.5±0.3mm;
- Fan on the top to evacuate the exhaust during combustion test;
- MFC control the height of flame;
- The sensor enable accurate position, the test starts timing automatically;
- Differential pressure gauge enable gas back pressure;
- Auto Electric spark ignition;
- PLC+7" digital display;
- Liner combustion speed;
- Set test time, ignition time;
- Calculate Liner combustion speed, display and save the data;
- Compare the standard referential data and the test result;
- Horizontal or vertical test program changeable;
- The alarm rings when the flame shock lasts 10s;
- The gas supply is cut automatically when no operation is conducted in the chamber for 10 min.;
| Model | GD-03001 Plastic Material Horizontal and Vertical Burning Tester UL94 |
| Dimension | Burning tester: 1350*700*1000mm Cabinet: 1350*700*650mm |
| Power supply | AC220V, 50/60Hz, 2A |
| Weight | 70kg |
| Gas source | >95% methane |
Our Services:
Pre-sale Service:
- Inquiry will be replied within 24 hours.
- Welcome to visit our factory.
- Technical datas and operation manual sent for evaluation.
After-sale Service:
- Training how to instal the machine, training how to use the machine at our factory;
- Engineers available to service machinery overseas at customers' cost;
