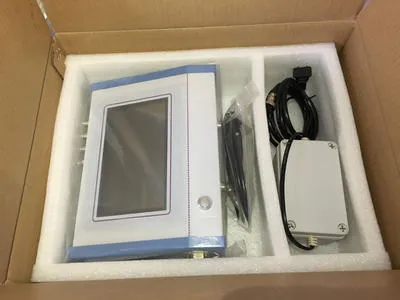

Ultrasonic Impedance Analyzer with Ultrasonic Transducers and Crystals

Ultrasonic welding Transducer: Admittance circle should not appear parasitic circle, resonance frequency should be as close as possible to the design frequency, dynamic impedance should be low, quality factor Qm should be close to the design requirements, capacitance should match the circuit.

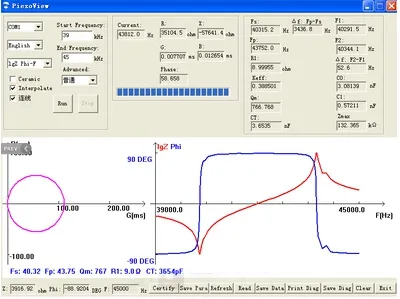

Piezoelectric Ceramic Sheet: It can judge the quality of the device directly from the admittance circle diagram and logarithmic coordinates. If there are layers or cracks in the ceramic sheet, the logarithmic curve will have multiple peaks. Several parasitic circles appear on the admittance circle.

Amplifier: Whether the design, processing and assembly are reasonable or defective can be clearly seen from the admittance circle chart. Ultrasonic impedance analyzer for sonotrode tuning and transducer testing
Ultrasound welding machine: In production and processing, the state of the welding machine is analyzed by the result of admittance circle, and the problems of the welding machine are found through the analysis of parameters and graphics.

Ultrasound cleaning machine: In production and processing, the selection of vibrator requires that its vibration performance be as consistent as possible (bandwidth, quality factor, resonant frequency, dynamic impedance). In the admittance circle diagram, there is no parasitic circle or parasitic circle near the resonance point as far as possible. Through the admittance circle, the impedance characteristics of the transducer can be analyzed and measured, including the manufacture of the transducer, the inspection of the incoming materials, the bonded transducer and the cleaning machine. The resonance frequency and static capacitance of the machine can be calibrated by measuring the whole machine, so as to match the power supply, and the new resonance point, impedance after water injection, capacitance and vibration mode characteristics of the machine can be analyzed.
