Universal Electric Extruder
STDT-2 Universal Electric Sample Extruder 150KNASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inor......
Send Inquiry
Product Description

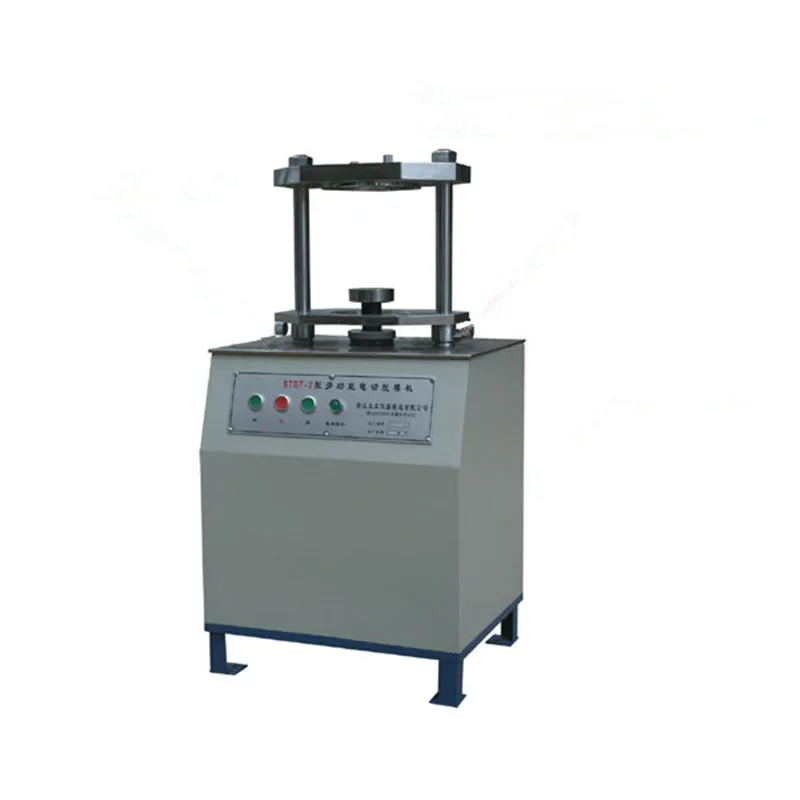

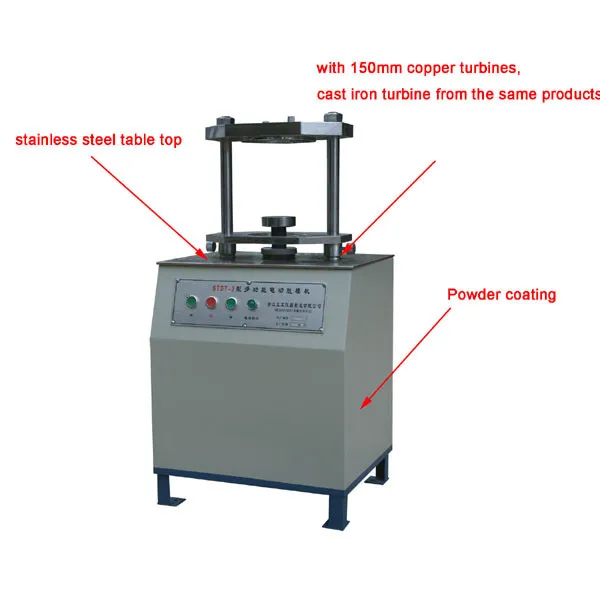

STDT-2 Universal Electric Sample Extruder 150KN
ASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2
Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.
The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. Hydraulic Universal Extruder can quickly eject the specimen from the mold and easy to operate.
ASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2
Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.
The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. Hydraulic Universal Extruder can quickly eject the specimen from the mold and easy to operate.
| Specimen can be stripped | Φ100,Φ101.6,Φ102, Φ150,Φ152 (mm) |
| Max. axial output load | 150KN |
| Max. Stroke | 230mm |
| Lift speed | 450mm/min |
