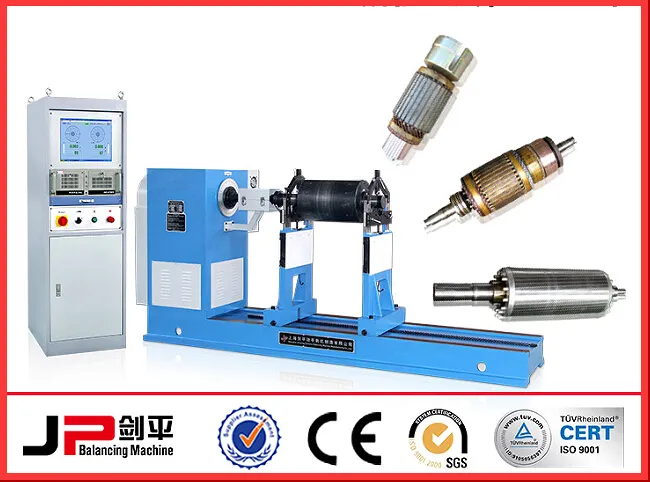

Universal Joint Drive Balancing Machine Phw- 160h
Technical specifications of Universal joint drive balancing machine PHW-160H(JP 580)Technical data at a glancePHW-160HPHW-300HPHW-500HMass Scope of Workpiece(kg)160300500Max Diameter of Workpiece(mm)Φ1000Φ1220Φ1500Distance Between Two Support Bearings(mm)Min 60Min 60Min 60Jou......
Send Inquiry
Product Description
Technical specifications of Universal joint drive balancing machine PHW-160H(JP 580)
| Technical data at a glance | PHW-160H | PHW-300H | PHW-500H |
| Mass Scope of Workpiece(kg) | 160 | 300 | 500 |
| Max Diameter of Workpiece(mm) | Φ1000 | Φ1220 | Φ1500 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 |
| Journal Diameter Scope of Workpiece(mm) | Φ15~752) | Φ15~752) | Φ15~752) |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 | 1500 | 1500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 600,10954) | 600,10954) |
| Motor Power (kw) | 31) | 31) | 41) |
| Torque of Universal Joint Shaft(N·m) | 60 | 60 | 60 |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount(emar) | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg |
2) Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation
Range of Application

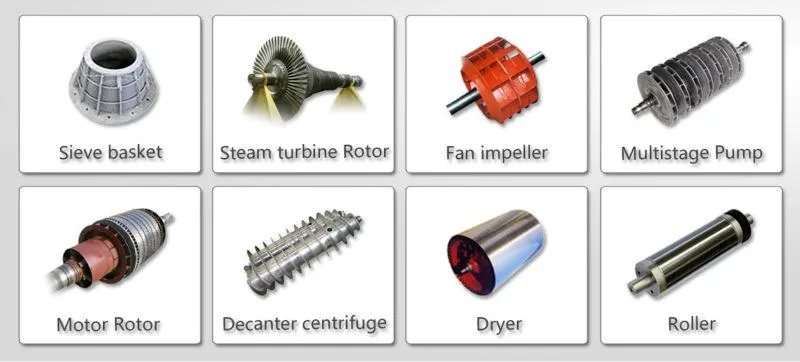

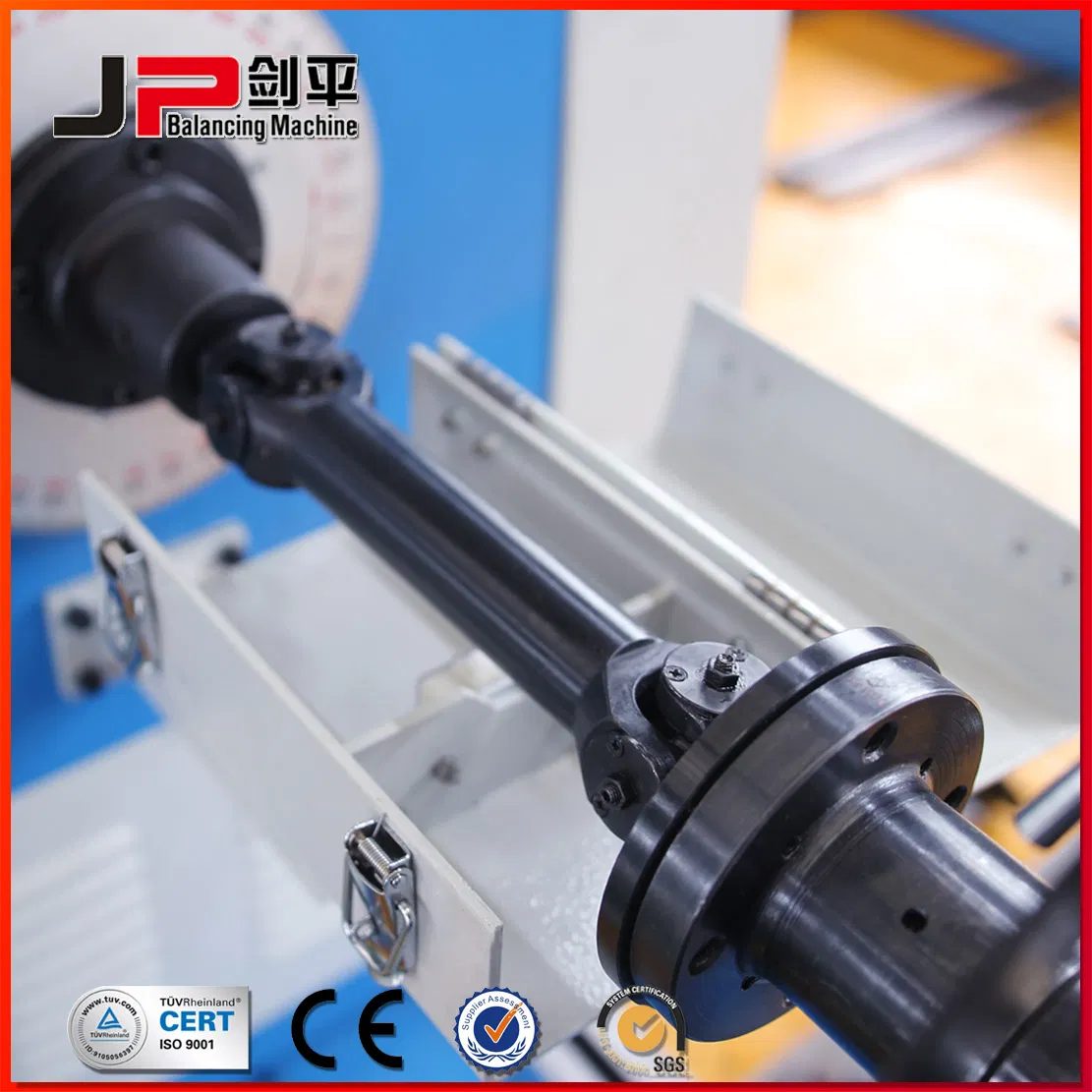

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

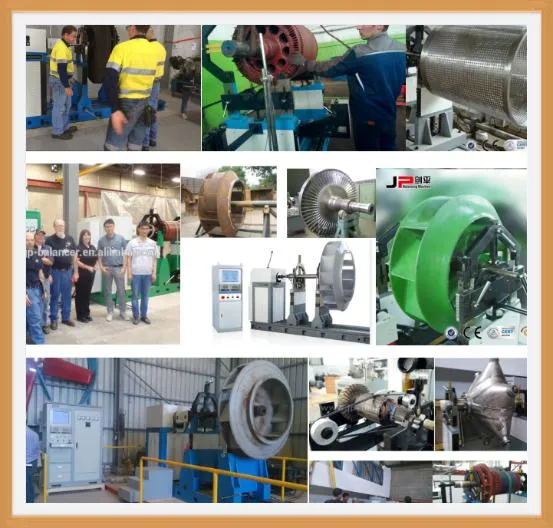

Customer use display
Eletrical Measuring System
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

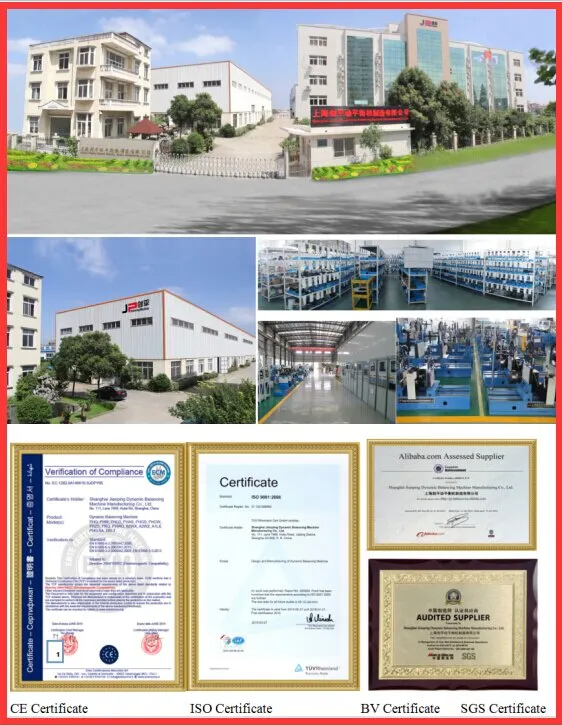

About us & Certificate
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.
We have ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
