Vlf Testing 0.1Hz 30~80kv Very Low Frequency AC Hipot Test Set of Hv Mv Cables Price with Ce Certificate
Vlf Testing 0.1Hz 30~80kv Very Low Frequency AC Hipot Test Set of Hv Mv Cables price with CE certificateVLF (Very Low Frequency) hipot Testers are suitable for testing power cables, transformers, switchgear, rotating machinery and other electrical apparatus.VLF hipot teser/high voltage Electrical Te......
Send Inquiry
Product Description
Vlf Testing 0.1Hz 30~80kv Very Low Frequency AC Hipot Test Set of Hv Mv Cables price with CE certificate
VLF (Very Low Frequency) hipot Testers are suitable for testing power cables, transformers, switchgear, rotating machinery and other electrical apparatus.
VLF hipot teser/high voltage Electrical Test Equipment Advantages:
1. Easiest to use Fully automatic microcontroller
2. Built-in printer
3. True sine wave output
4. Real-time display of actual output waveform
5. Ergonomic, menu guided, large backlit LCD
6. Storage of test results for later retrieval and print.
7. Over voltage and current protected
8. Variable frequency 0.1Hz, 0.05Hz, 0.02 Hz
9. Data of current, voltage and waveform directly sampled at HV side.
10. AC testing does not degrade good cable insulation
11. Harmful space charges are not injected into the cable insulation
12. No traveling waves are generated during testing
13. Rugged and reliable design less prone to failure from transients

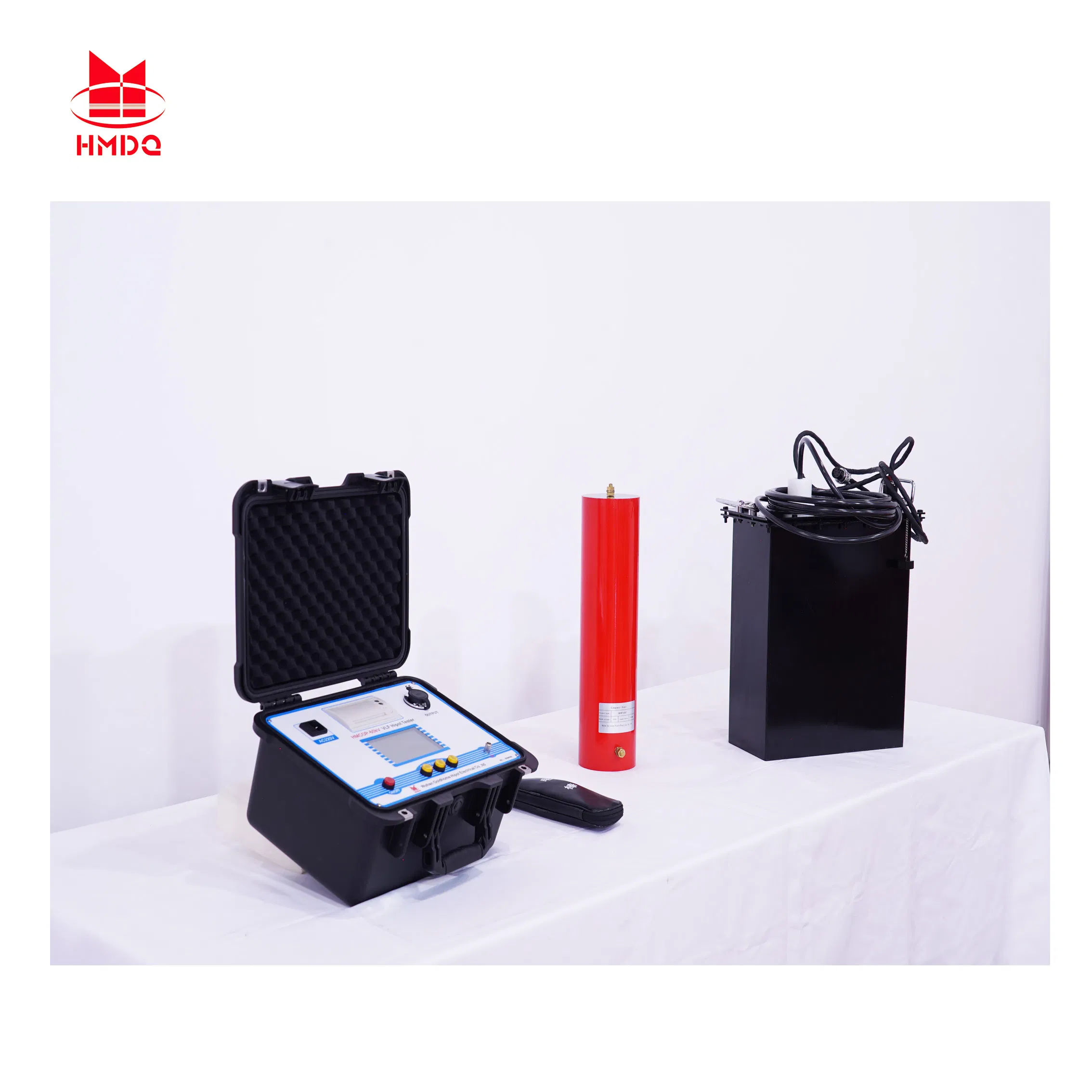

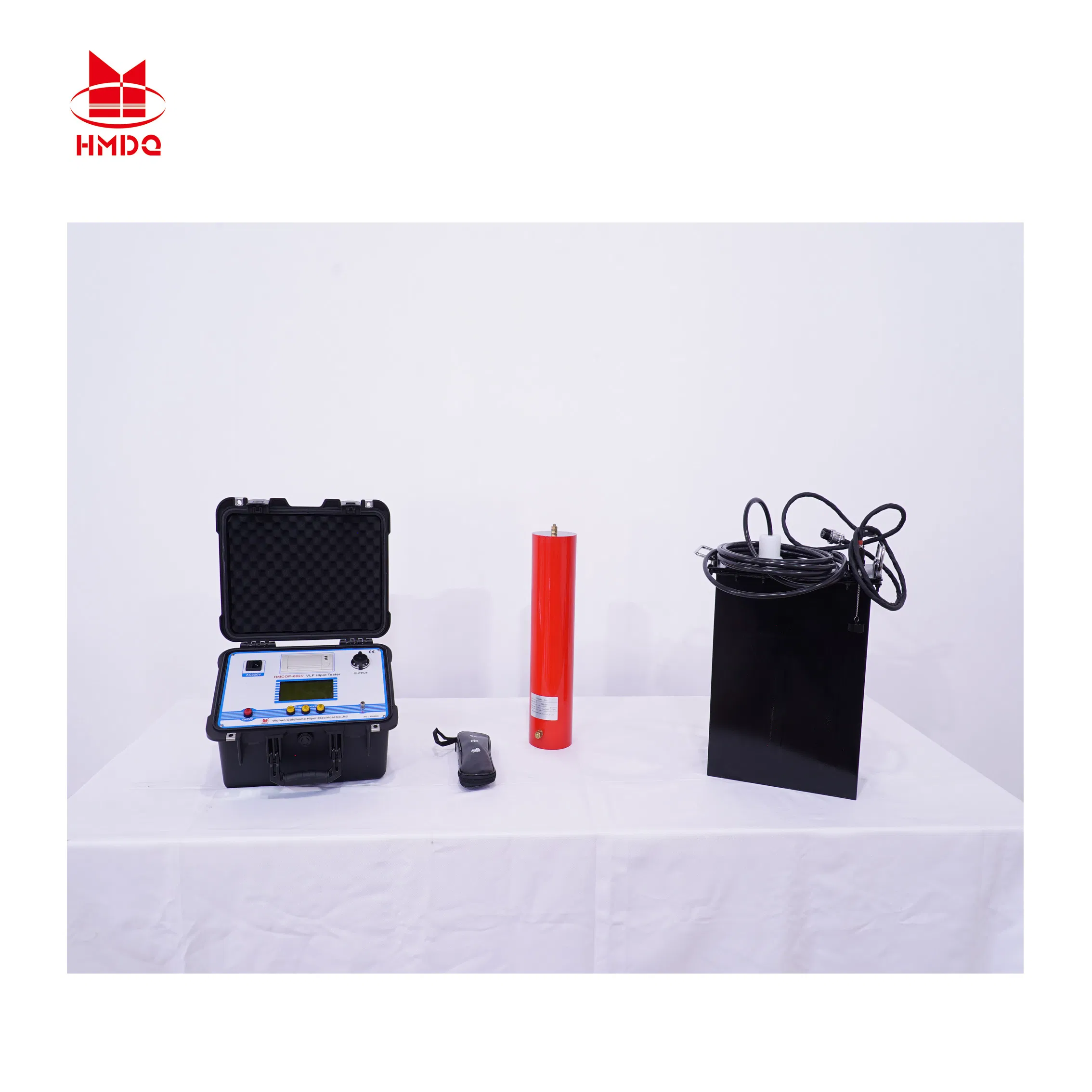

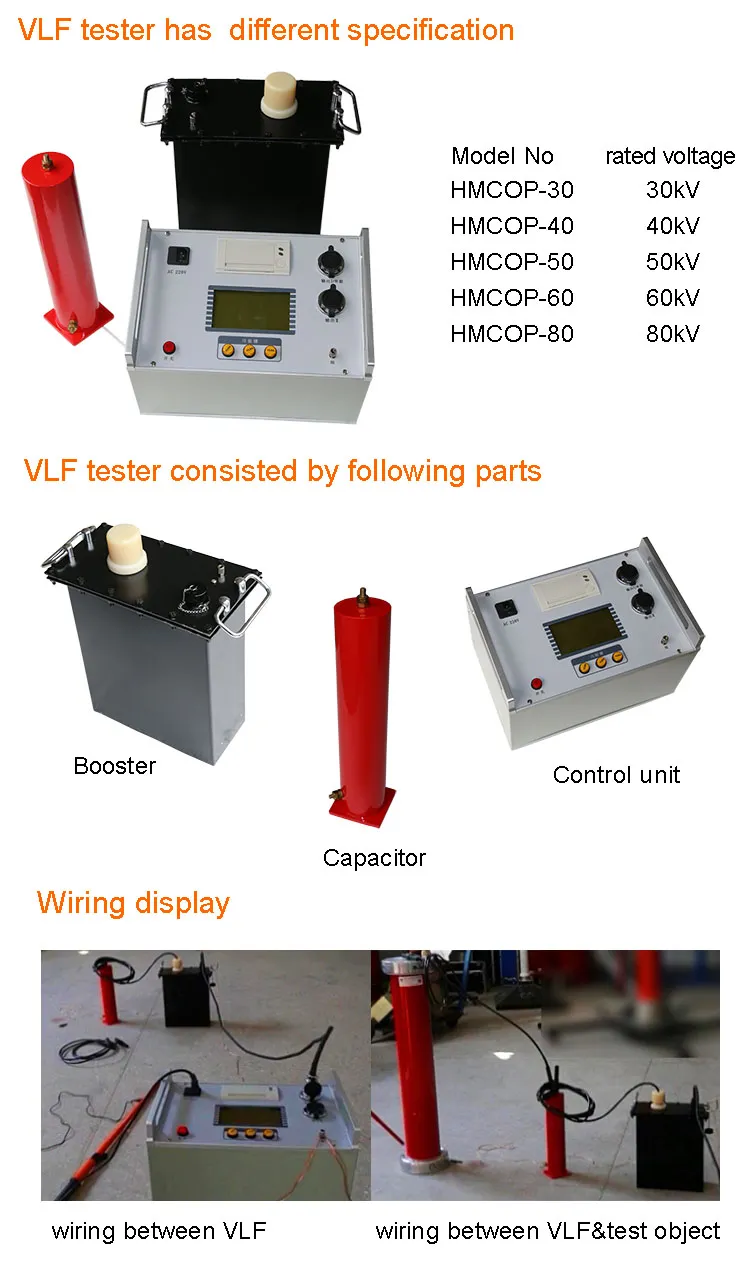

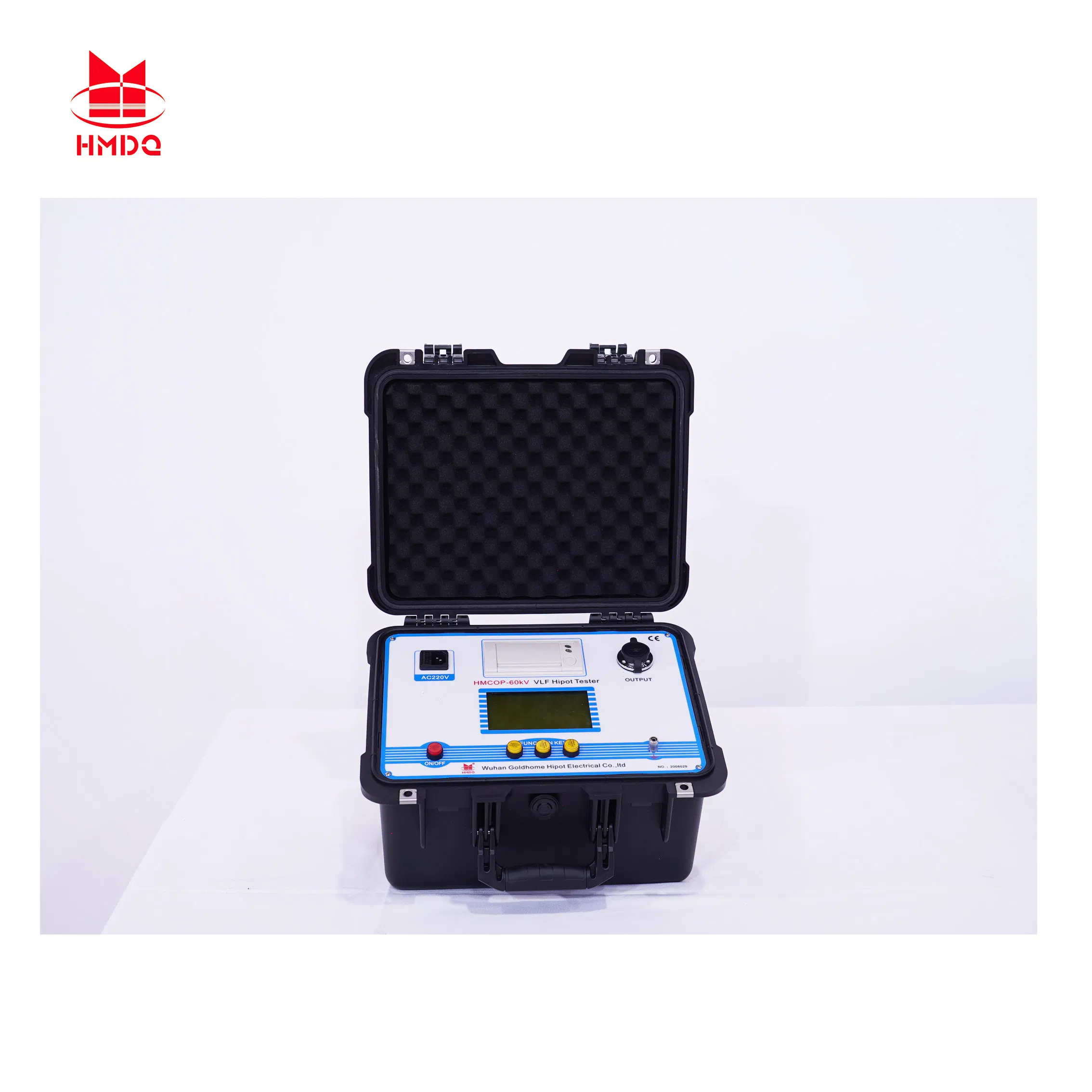

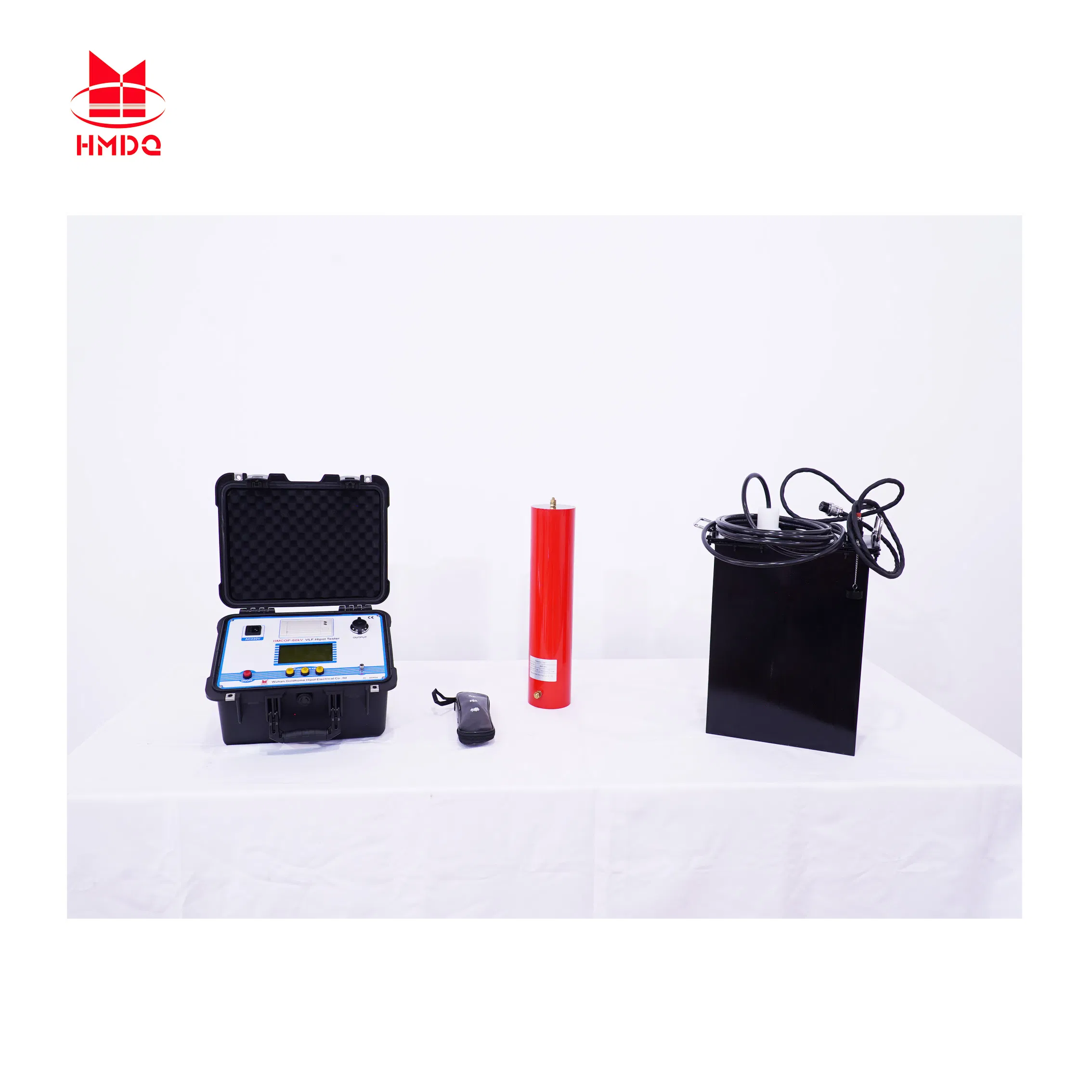

VLF hipot tester/high voltage Electrical Test Equipment detailed images :
VLF hipot tester/high voltage Electrical Test Equipment Technical Parameters:
1. Input: 220 ± 10% Volts AC, 50/60 Hz, single phase.
2. Output-Voltage:See below table 1.
3. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz.
4. Stability of frequency: Fluctuation < 0.5%
5. Measurement accuracy: ±3%.
6. Positive and negative voltage peak errors: ≤3%.
7. Voltage waveform distortion: ≤5%
8. Construction: In two units: Controller and Booster..
9. Ambient conditions of use: temperature Indoor and
outdoor : -10ºC to + 50ºC.
10. Humidity:≤85%

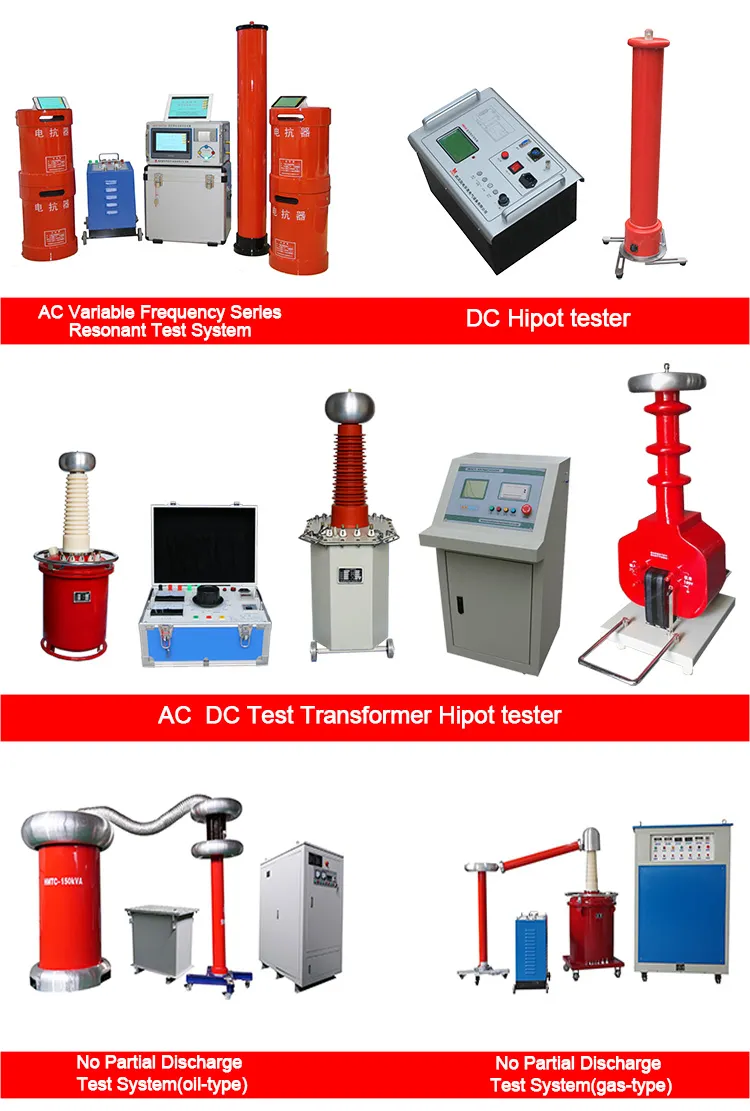

Similar Product:
