Wholesale Environmental Aging Test Machine for Coating Aluminum
Climatic Simulation Xenon Lamp Aging Chamber for Plastic MaterialsISO4892, ISO11341, ASTM G115, ASTM D2565, ASTM D4459, ASTM D6695Use special xenon arc lamps with full sunlight spectrum to simulate the existence of destructive waves in different environments, which can provide the appropriate envir......
Send Inquiry
Product Description

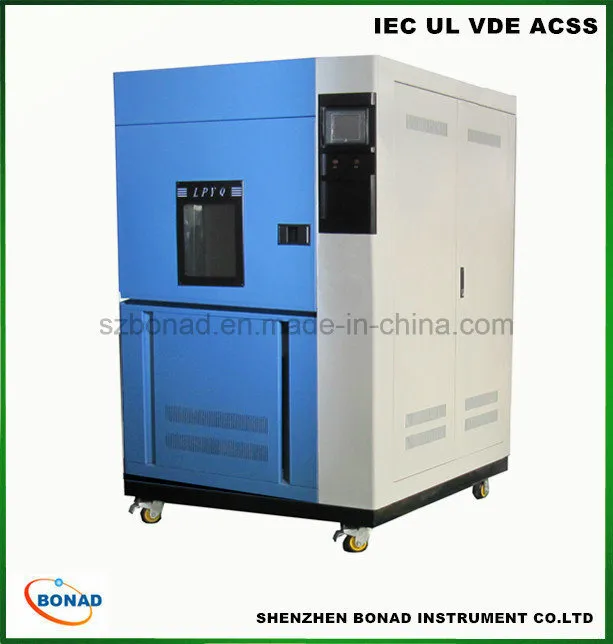

Climatic Simulation Xenon Lamp Aging Chamber for Plastic Materials
ISO4892, ISO11341, ASTM G115, ASTM D2565, ASTM D4459, ASTM D6695
Use special xenon arc lamps with full sunlight spectrum to simulate the existence of destructive waves in different environments, which can provide the appropriate environment for the simulation of scientific research, product development and quality control, and accelerated testing.
Xenon arc chamber can be used to select a new material, or to change an existing material or to assess the durability of changed materials product.It can simulate the product under different environmental conditions to see the changes of the exposed material to the sun,
Through aging the sample which to be exposed under the xenon arc lamp light and thermal radiation to evaluate the weather resistance and light resistance.It mainly used in automotive, paints, rubber, plastics, paint, adhesive , fabric and so on.
| 1. Working room size (mm): | (700 × 700 × 700 (width × depth × height)) |
| 2. Temperature range: | 10 ºC ~ 80 ºC |
| 3.Rrelative humidity range: | 50% ~ 98% R.H |
| 4. Black panel temperature: | 63 ºC, 100 ºC (deviation ±3 ºC) |
| 5. Temperature fluctuation: | ≤ ± 0.5 ºC |
| 6. Temperature evenness: | ≤ ± 2.0 ºC |
| 7. Humidity fluctuation: | + 2% ~ -3% R.H |
| 8. Glass windows filter: | borosilicate glass |
| 9. Xenon light source: | imported air-cooled xenon arc light source |
| 10. Xenon lamp power: | 1.8KW, 2pcs means: 1.8KW × 2 = 3.6 KW |
| 11. The total number of lamps: | 2 |
| 12. Rainfall time: | 1 to 9,999 minutes. |
| 13. The rainfall cycle: | 1 to 240 minutes. |
| 14. Spray nozzle aperture: | Ф0.8mm (backwater with precision filter to prevent nozzle clogging) |
| 15. Rain water pressure: | 0.12 ~ 0.15kpa |
| 16. Water cycle (water time / non-water time): | 18min / 102min or 12min / 48min (water time / non-water time) water pressure 0.12 ~ 0.15Mpa |
| 17. Heating power: | 3.5KW |
| 18. Humidification power: | 2KW, sample tray size: 600 × 500mm |
| 19. Light cycle continuously adjustable time: | 1 to 999 hours |
| 20.Spectral wavelength: | 290nm ~ 800nm, continuously adjustable illumination period, the cumulative amount of radiation: 14,000 ~ 67,000 KJ/m. |
| 21. Environment temperature: | 5 ºC ~ 35 ºC |
| 22. Environment Humidity: | ≤85%R.H |
FAQ :
1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
2.What is the MOQ ?
Most instruments support MOQ one set.
3.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
4.What is the warranty of the products?
One year ,but we can provide you life long support .
5.What is the package?
Export standard Solid wooden case
6.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
7.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
Company Profile :
Our Advantages :
Certifications :

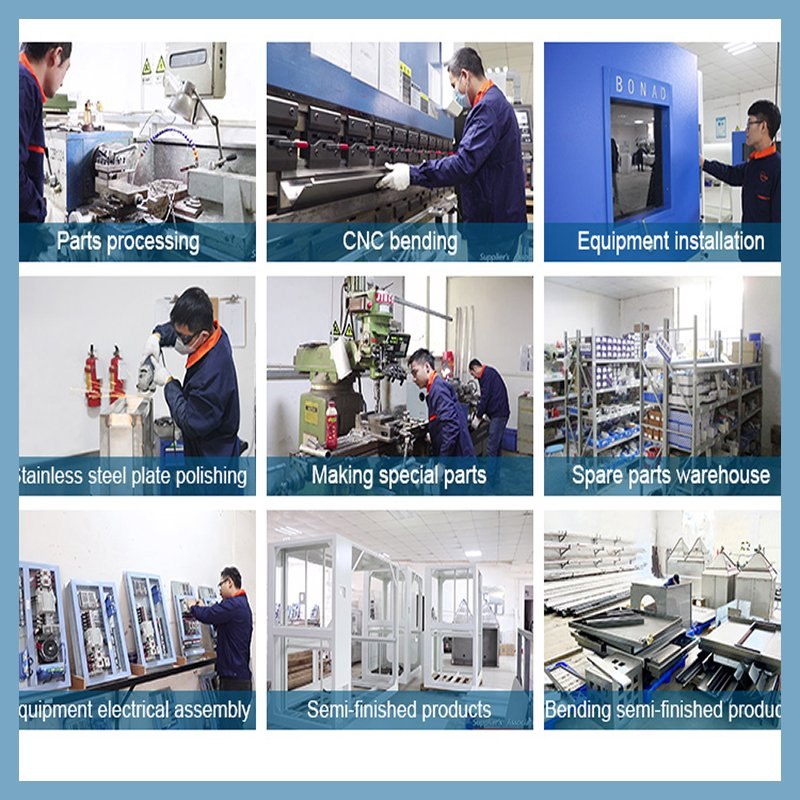

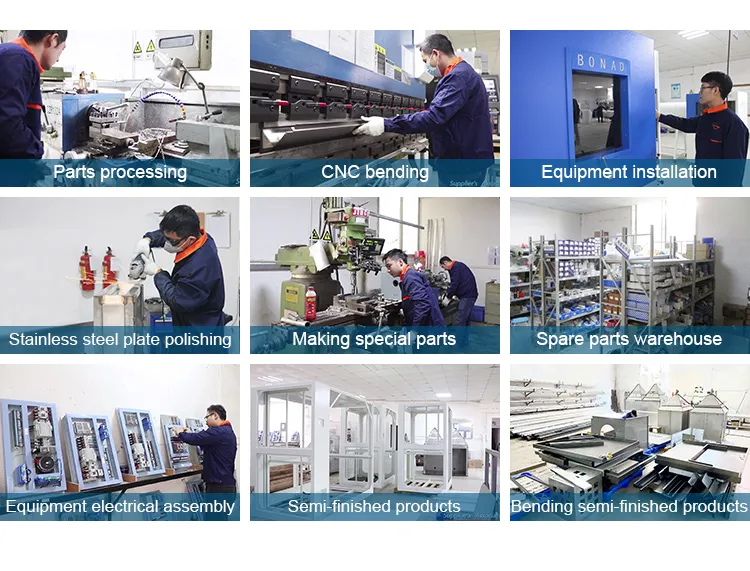

Factory Introduction :

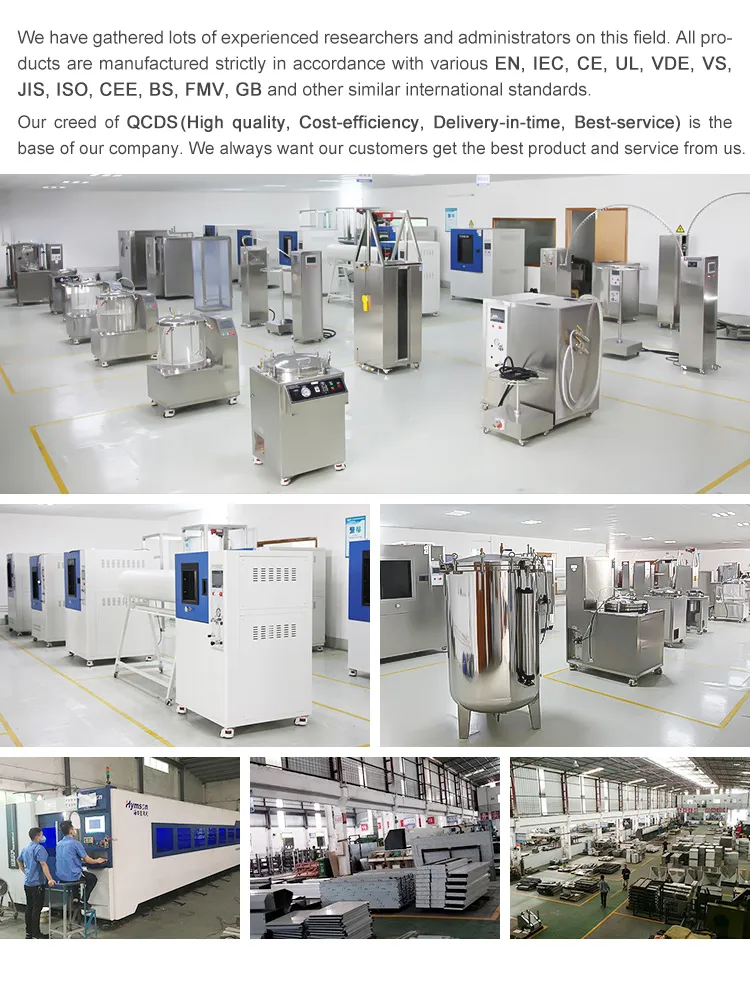

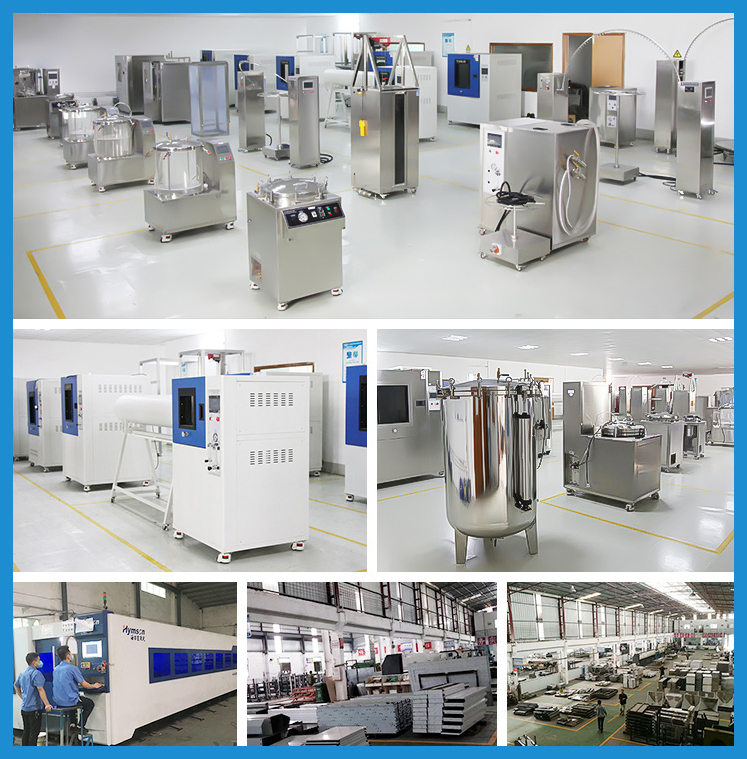

Plant Warehouse :
Cooperative Customers & Brands:

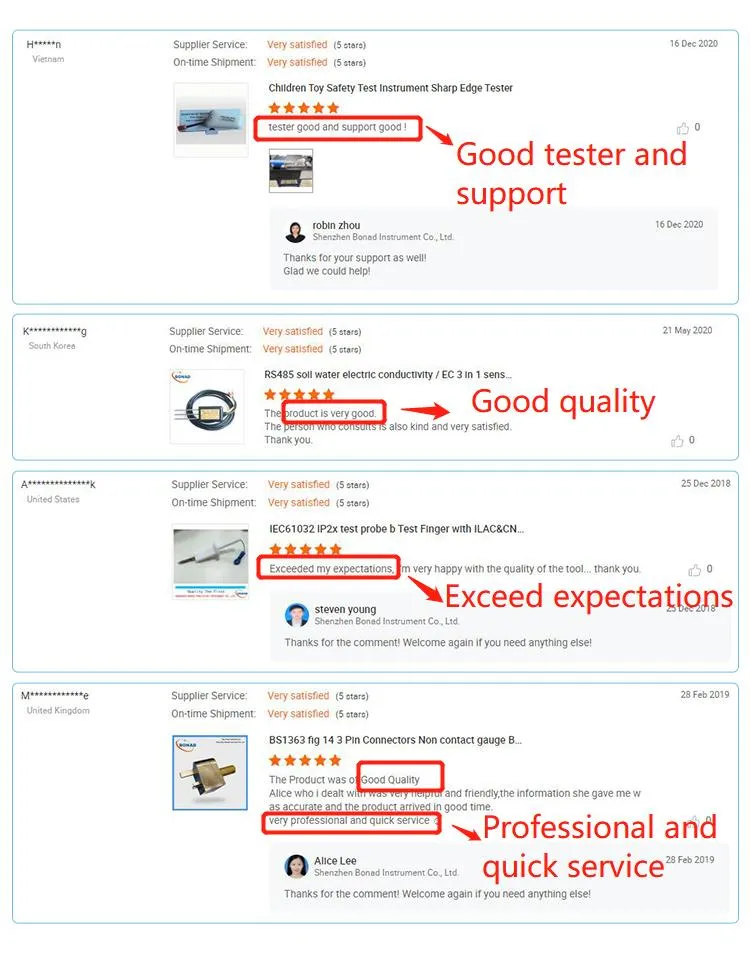

Customer Reviews :
