Wire Insulation Thickness Gauge
XL-313B wire insulation thickness gaugeTest standards:UL62,1581 and other standard requirement,Application range:It is designed to measure the insulation thickness of the measuring wire.It is desktop-type, the scale is bolted to the base, and it is not required to carry the hand. The needle fixture ......
Send Inquiry
Product Description

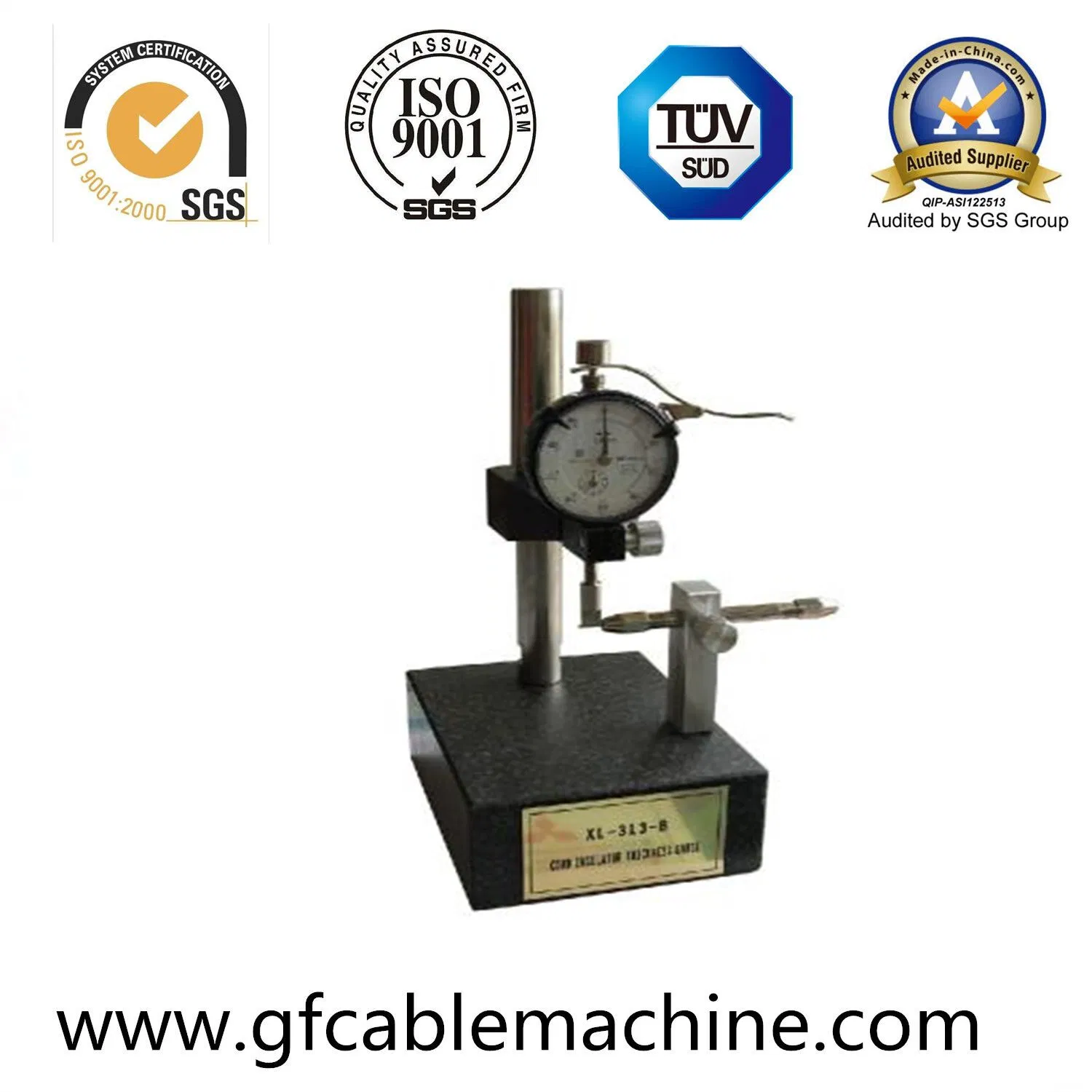

XL-313B wire insulation thickness gauge
Test standards:UL62,1581 and other standard requirement,
Application range:It is designed to measure the insulation thickness of the measuring wire.It is desktop-type, the scale is bolted to the base, and it is not required to carry the hand. The needle fixture is also accurate for the test of the malformed pipe.
Technical parameters:
1,Measurement range:0.01~10mm(Mitutoyo pointer type indicator) 2,Load:10gf,25gf,85gf
3,upper clamp:9.52×1.98,7.92×1.09,ø6.4mm 4,lower clamp:ø 0.4,0.6,0.8,1.0mm
5,volume:12×15×28cm 6,weight:about 3.8kg
XL-313C wire insulation thickness gauge
Test standard:UL2556 and other standard requirement,
Application range:It is designed to measure the insulation thickness of the measuring wire.It is desktop-type, the scale is bolted to the base, and it is not required to carry the hand. The needle fixture is also accurate for the test of the malformed pipe.
Technical parameters:
1,Measurement range:0.01~10mm(Mitutoyo pointer type indicator) 2,precision:0.01mm
3,Load:25gf±2gf,85gf±3gf 4,upper clamp:9×2 mm±0.01,ø6.4mm±0.02
5,volume:12×16×26cm 6,weight:about 3.5kg
